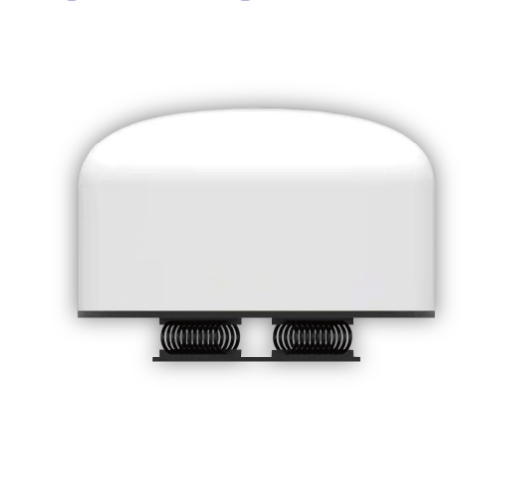

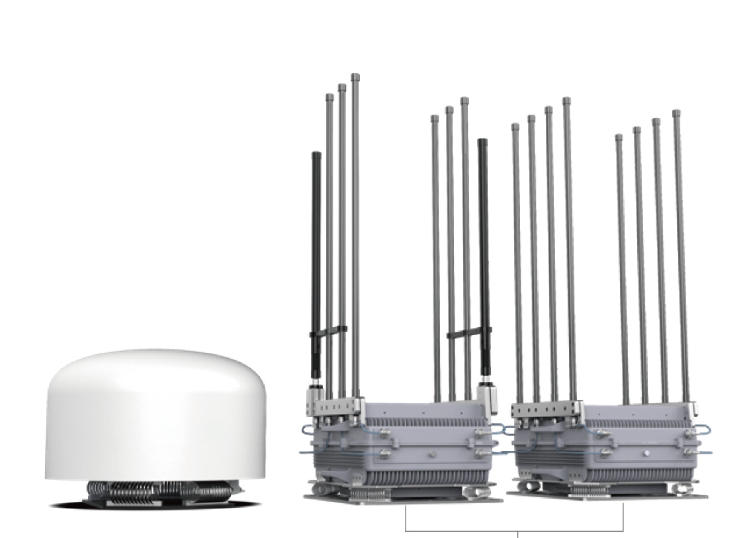

Yh-A28 VDC2 PRO Drone Detection Positioning

No.

Specification

Parameter

Remarks

1

Detection Drone Model

Mainstream brands such as DJI, Autel, FIMI, Dahua, Yuneec, as well as most custom-built FPV drones and Wi-Fi drones on the market

2

Supported Drone Models for Localization

Certain DJI models such as Mavic, Air, Mini, FPV, and Avata

3

Detection Frequency

100MHz~6GHz

4

Detection & Localization Range

1~5km

Varies with environment

5

Detection Altitude

0m~1000m

6

Number of Detection Targets

≥10drones

Simultaneous

7

Number of Locating Trajectories

≥5drones

Simultaneous

8

Azimuth Error

≤1°(RMS)

9

Localization Accuracy

≤10m

10

Detection Success Rate

≥97%

11

Recognition Responcse Time

≤3s

11

Localization Accuracy

≤10m

12

Number of Locating Trajectories

≥5drones

Simultaneous

13

Supported Drone Models for Single-Station Positioning (including pilots)

Certain DJI models such as Mavic, Air, Mini, FPV, and Avata

14

Sweep Frequency Range

100MHz~6GHz

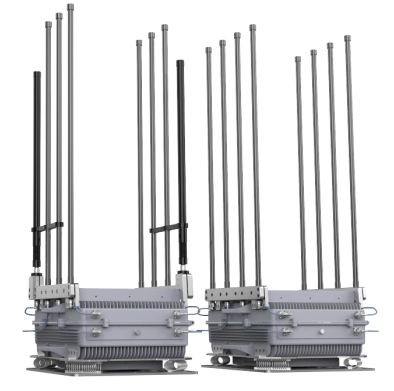

Jamming

No.

Specification

Parameter

Remarks

1

Operating Mode

RF Suppression

2

Target Object

Drone video transmission, Flight control link, Navigation signal

3

Operating Frequency

Channel 1(900MHz);(915)MHz~(917)MHz

Channel 2(1.5GHz):(1563)MHz~(1603) MHz

Channel 3(2.4GHz)(2400)MHz~(2483.5)MHz

Channel 4(5.2GHz)(5150)MHz~(5350)MHz

Channel 5(5.8GHz):(5725)MHz~(5850)MHz



And other common frequency channels can be independently controlled and flexibly combined as needed

4

Transmission Power

Output Power per Port(Average Power)
Channel 1(37±2)dBm

Channel 2(37±2)dBm

Channel 3(45±2)dBm

Channel 4(45±2)dBm

Channel 5(45±2)dBm

5

Jamming Range

1.5km-2km

Varies with frequency band, model and environment

6

Jamming Mode

Directional & Omnidirectional
