Product Description
Overview

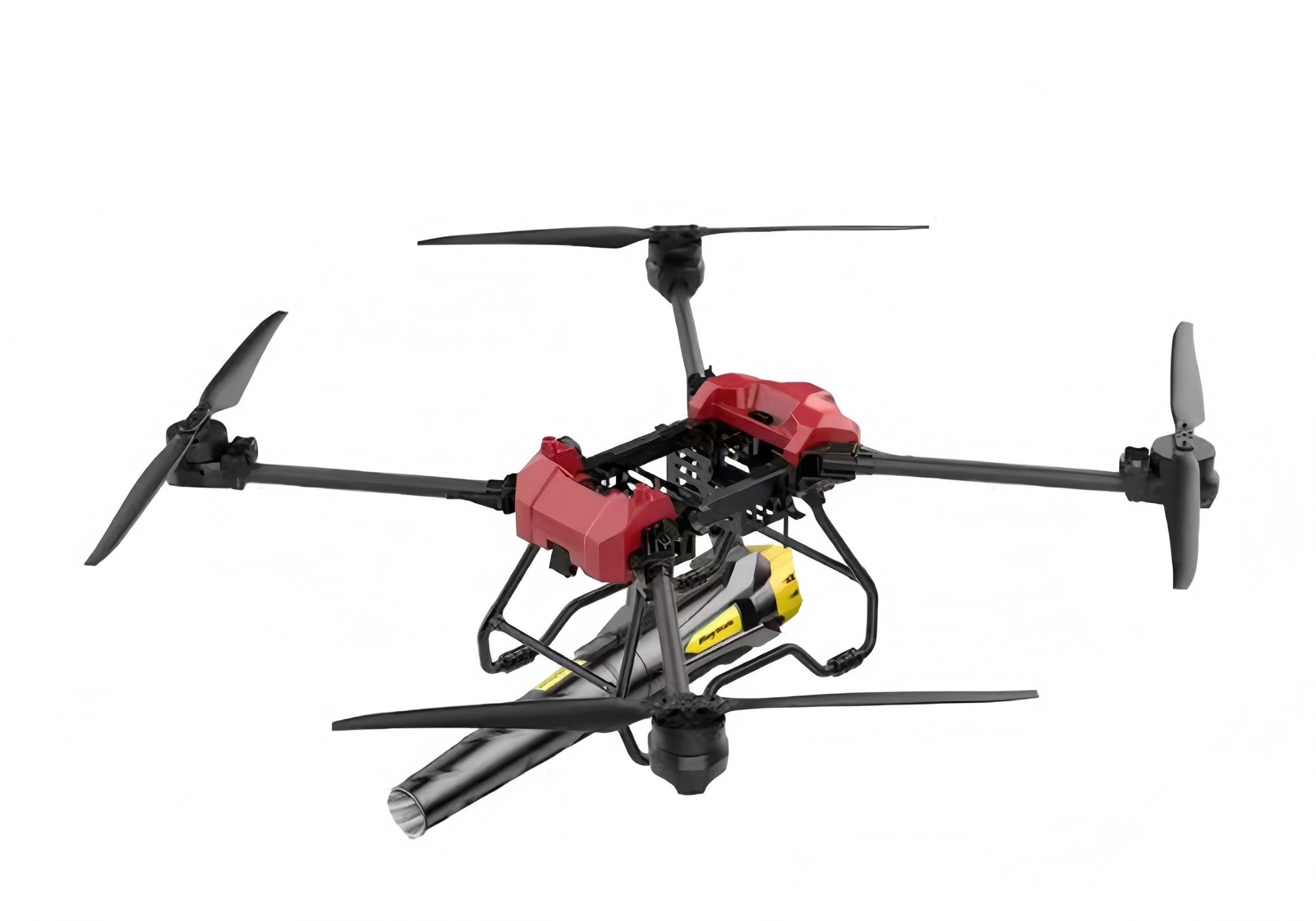

The YH-C23 HJ-QC50 is a large high-pressure dust suppression drone engineered for robust performance. It features a substantial 280kg maximum take-off weight and a high 140kg safe lifting capacity for heavy-duty operations. The drone is powered by a 15kw/H battery, ensuring extended mission time. For precise positioning, it offers a 0.1m hover accuracy and operates effectively at mission altitudes from 20 to 1200 meters. Its compact folding size of 1680mm1320mm1200mm ensures easy transport and deployment.
Detailed technical parameters
Body material; | Composite carbon fiber/Aviation aluminum | Body wheelbase size | 1980 mm |
Collapse folding size; | 700mm*600mm*800mm | No-load weight (including battery) | 50kg (battery pack power) |
Maximum take-off weight | 120kg | Maximum altitude of the mounted water pipe | 18mm diameter = 150m, |
Maximum climb speed | 6m/s | Battery life | ≥45min (ideal environment) |
battery capacity | 96000mAh | Flight control system | Dual backup + AI control algorithm |
Operation spray gun @ pre | 1.5m@3-5Mpa | Jet flow | 30-60L/min (adjustable) |
Working performance | Manual work 50 times | Remote control communic | 30km (no interference) |
Obstacle avoidance mode | Radar + Vision + Electronic Fence | Airplane mode | Pose/GPS/Autonomous Flight |
Flight altitude | 0~5000m | Maintenance cycle of the whole machine | 3 years |
Waterproof rating of the body | IP67 (washable) | Visual support | High Definition 1080p+ spotlight |
