Product Description
Overview

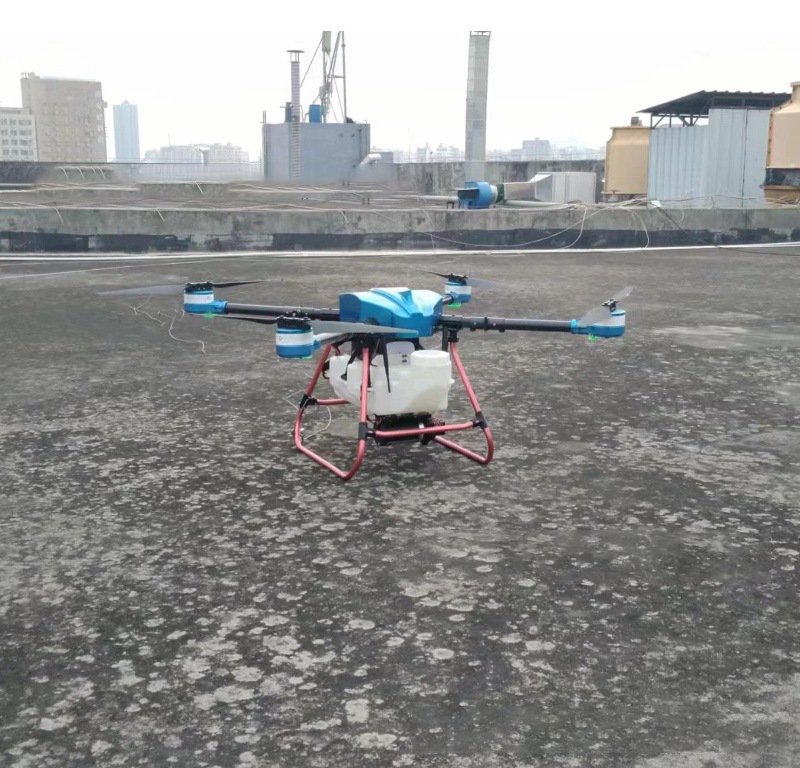

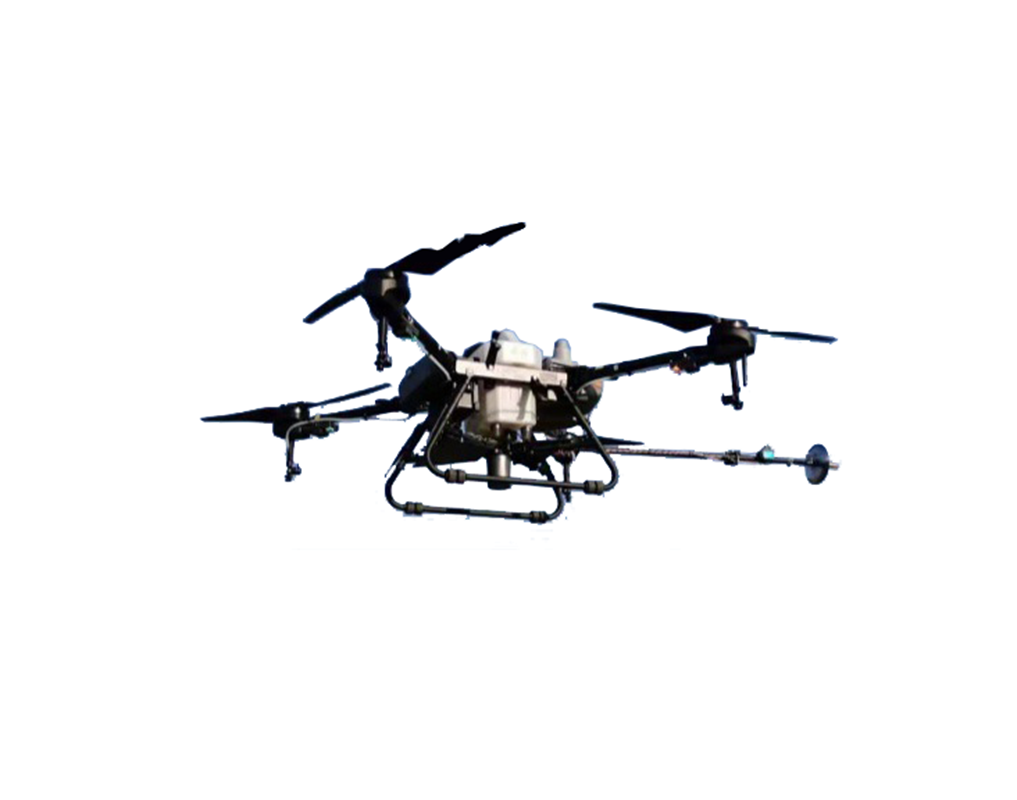

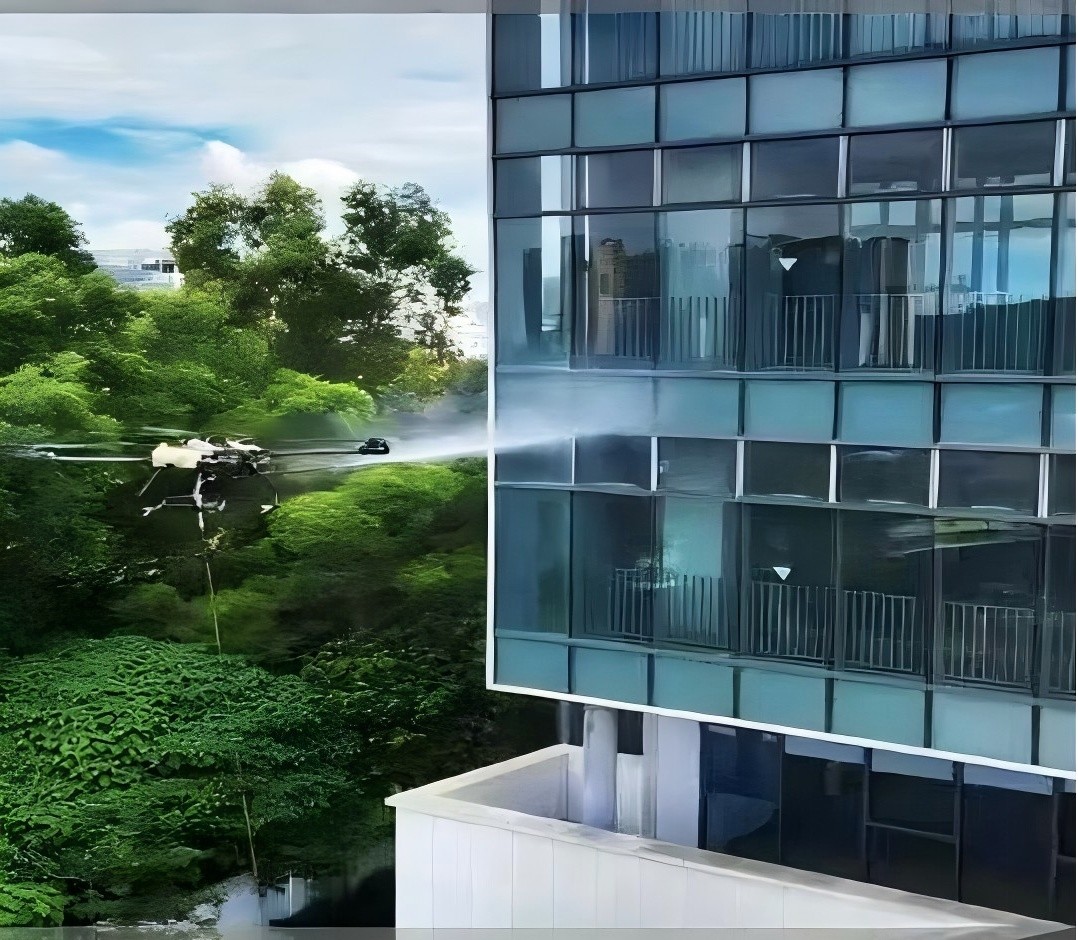

The YH-C24HJ-QX50 is a high-performance cleaning drone engineered for efficiency and adaptability. It features a 105kg maximum take-off weight and an adjustable spray flow rate of 5-10L/min for various tasks. Powered to operate at altitudes up to 5000m, it offers an effective battery life of 12-35 minutes (depending on load). The drone ensures precise cleaning with its 1080P camera and boasts excellent portability, folding down to a compact 1680mm1320mm1200mm for easy transport.
Detailed technical parameters
Body material | High strength composi te carbon fiber | Body wheelbase size | 2180mm |
Collapse folding size | 480mm* 320mm* 500mm | Total weight of thedevice(including battery) | 50kg |
maximum take-off weight | 105kg | Maximum water holding capacity | 50L |
Flight speed range | 0-12m/s | Effective battery life | 12~35 minutes (depending on the load) |
battery capacity | 30000mah@14s | Flight control system | Dual IMU, dual GPS |
Operating spray gun pressure | 1.2m@3-5Mpa | Spray flow rate | 5-10L/min |
Work efficiency | 50 times that of manual cleaning | Distance of remote control for integrated data and graphics | 15km (open and no interference) |
Obstacle avoidance mode | Radar + visual omnidirectional obstacle avoidance | Camera resolution | 1080P |
Flight altitude | 0~5000m | Overall machine maintenance life | ≥12000h |
Flight mode | Attitude /GPS/ Autonomous Flight | Waterproof, dustproof grade | IP67 (light rain) |
