Overview

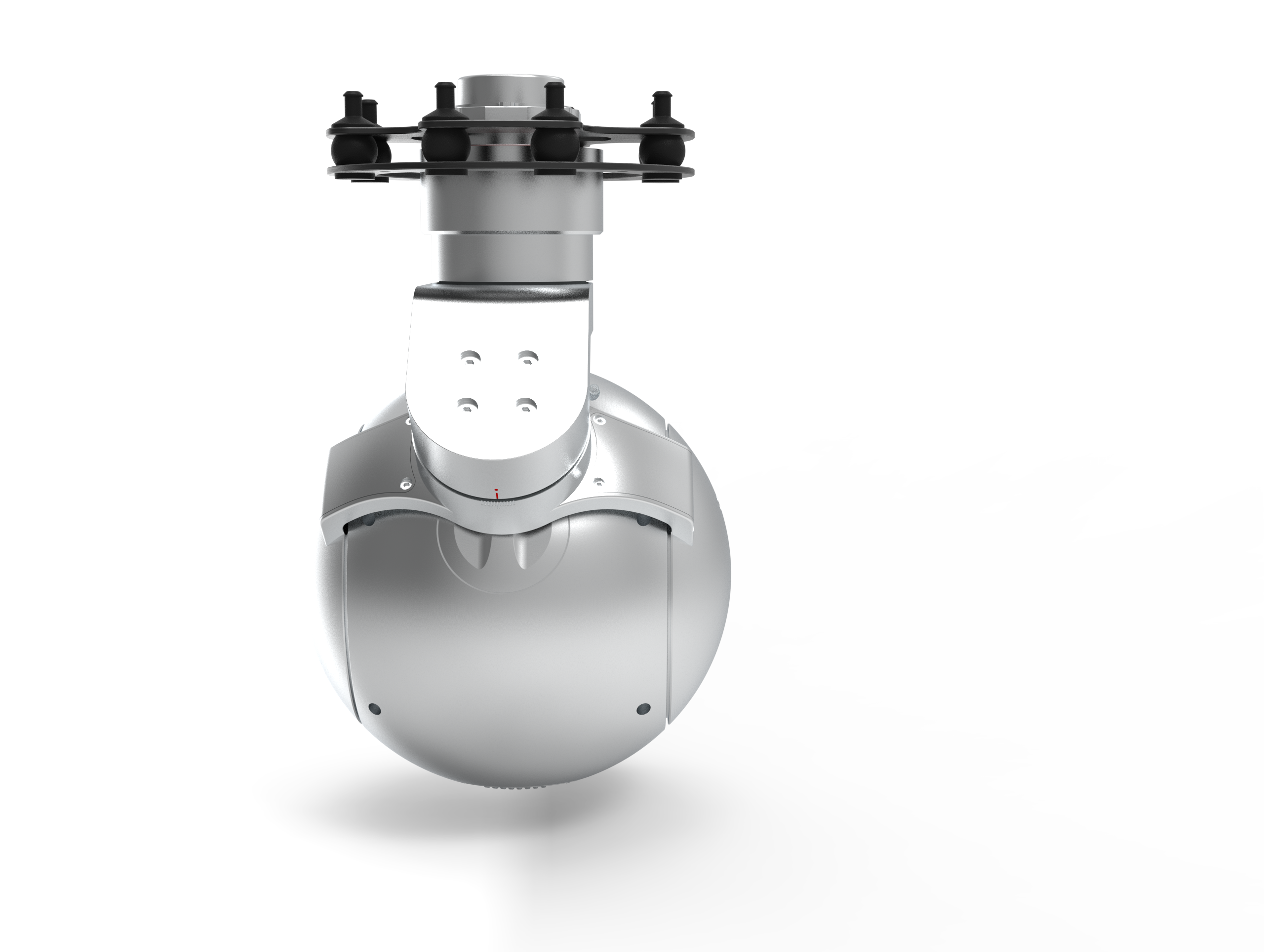

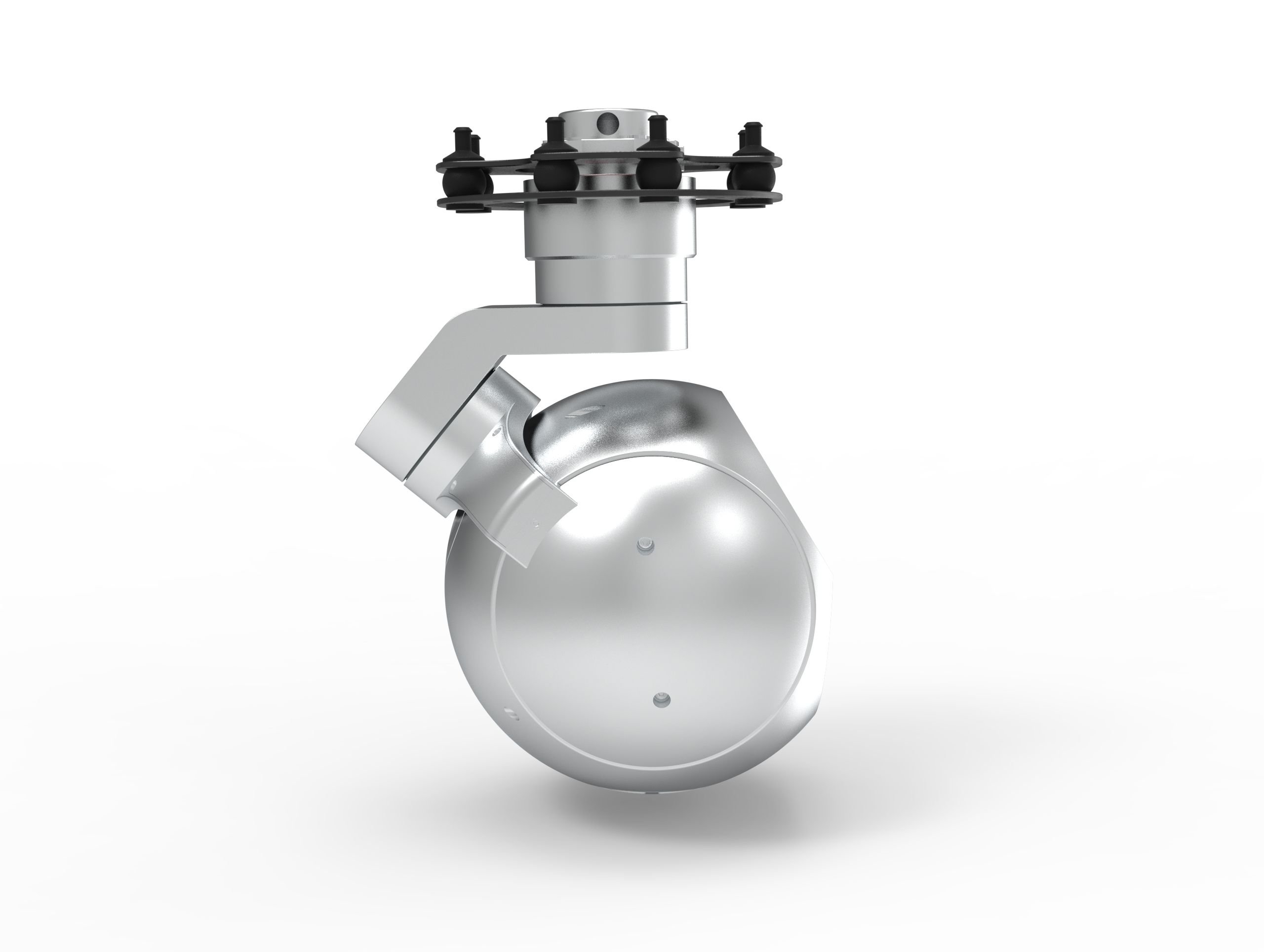

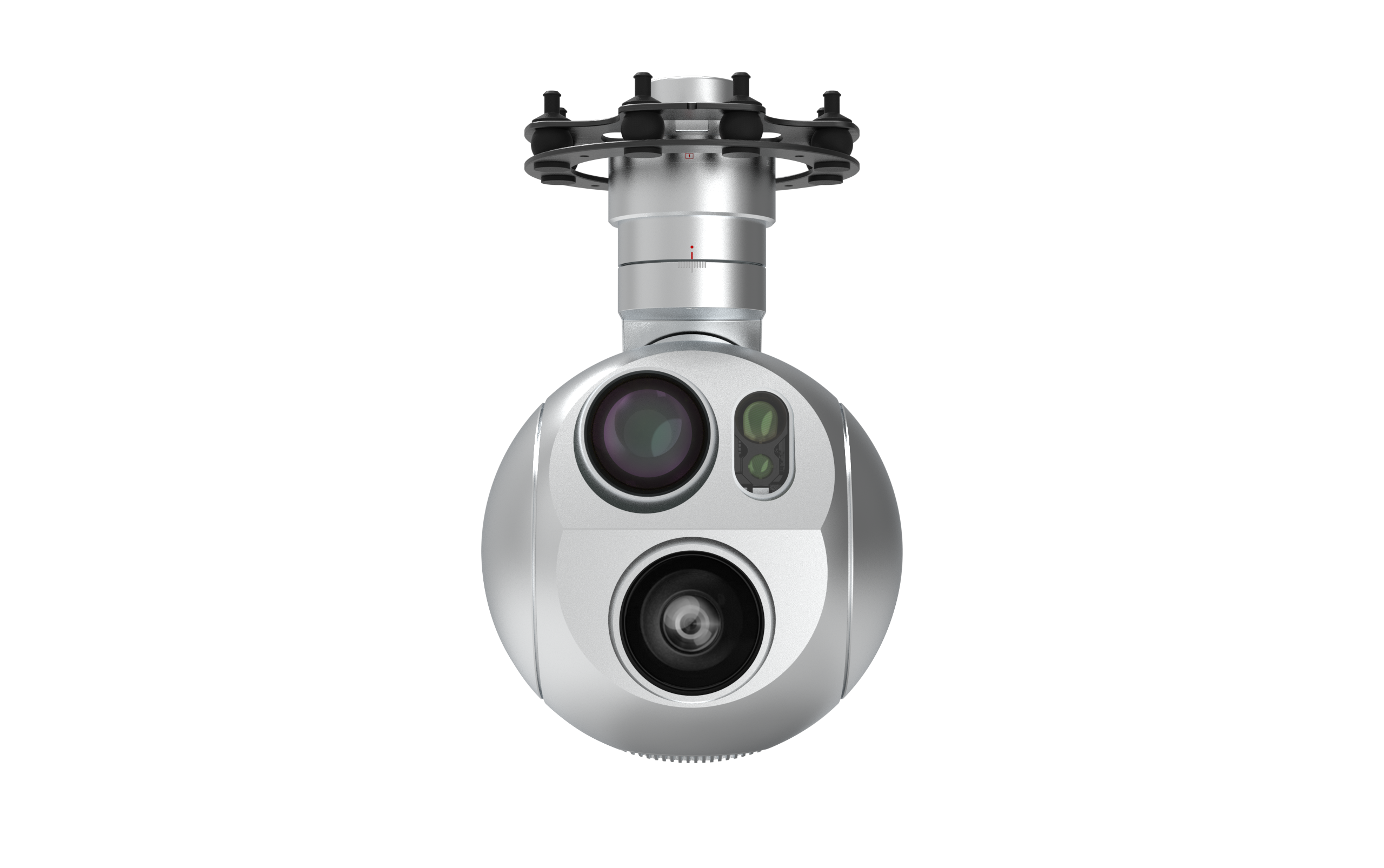

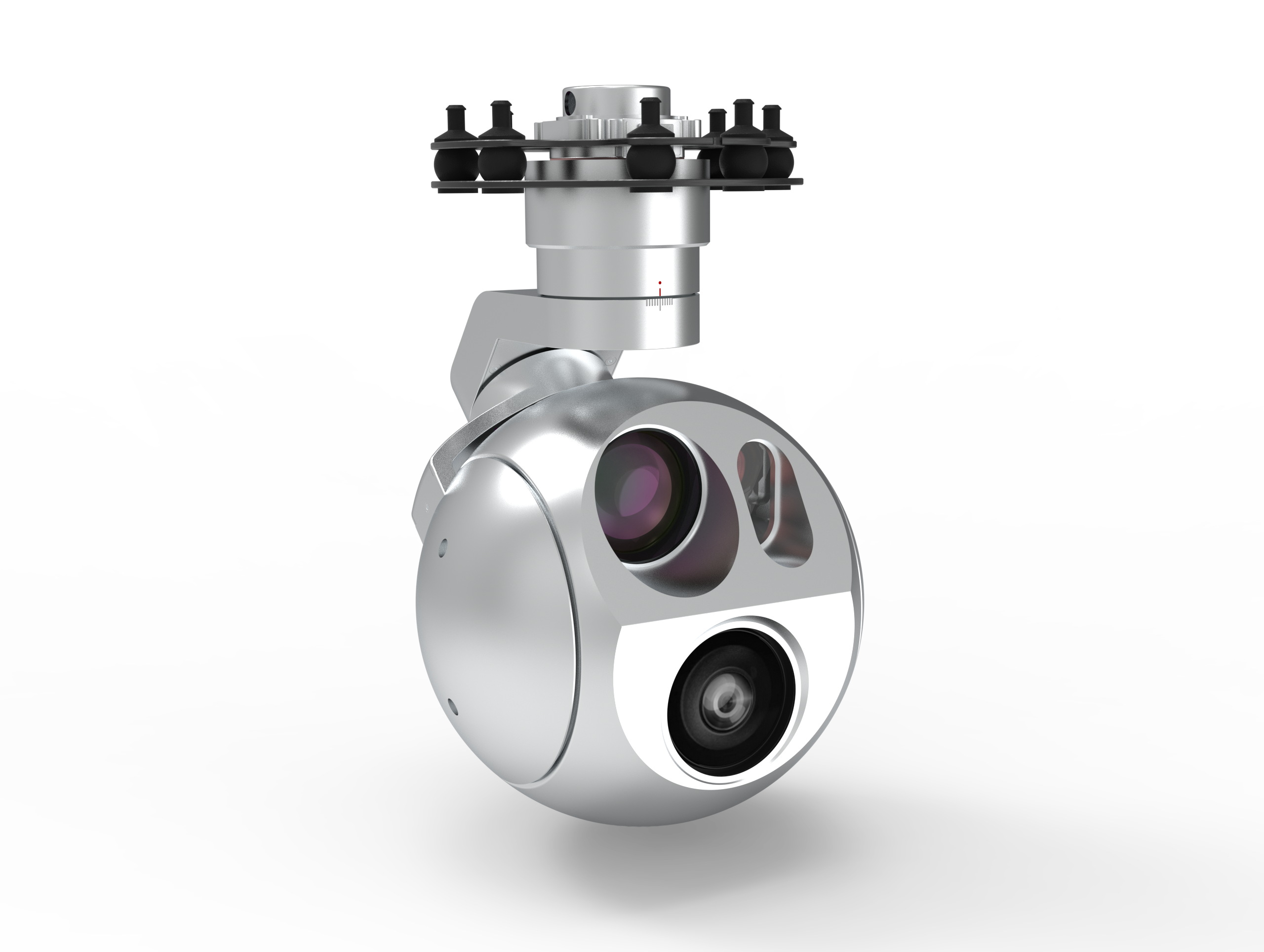

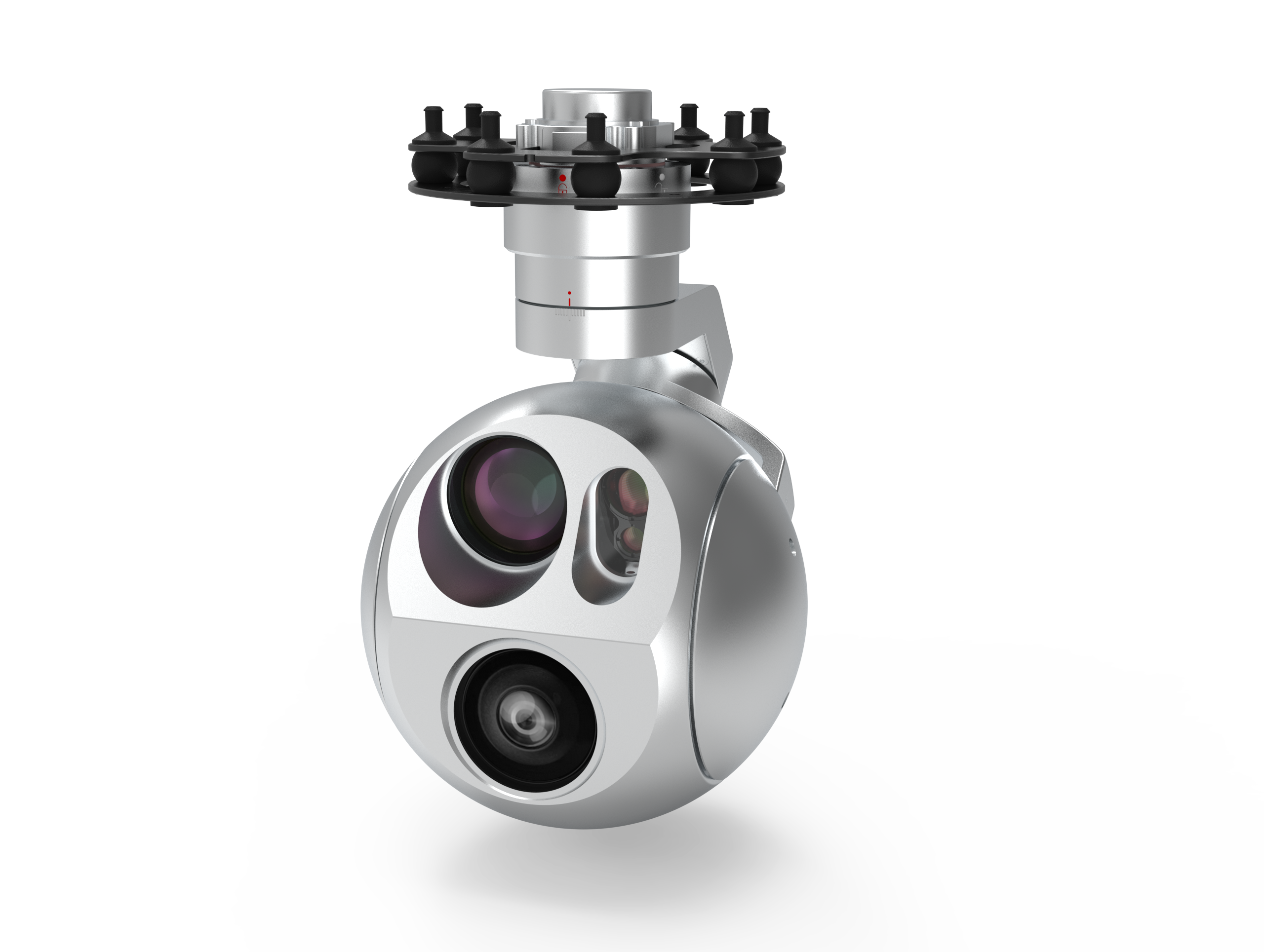

The L40TR intelligent electro-optical pod adopts a three-axis coaxial stabilization platform. It achieves stable imaging under complex on-board motion attitudes through a high-precision coaxial control system. The system integrates a 40x visible light camera, a fixed-focus long-wave uncooled infrared component, and an eye-safe laser ranging module. This product is compatible with various small and medium-sized rotorcraft/fixed-wing unmanned aerial vehicles and special operation platforms, and is suitable for fields such as security, emergency response, inspection, and ecological temporary measurement. It features all-weather reconnaissance, image tracking, target recognition, geographic coordinate positioning, and beyond-visual-range situation awareness capabilities.
Technical parameters
Multi-target tracking | Single target tracking | |
Target type | People, vehicles, ships, and airplanes | General goals |
Update frame rate | ≥20FPS | ≥50FPS |
Tracking rate | ≥30 pixels/frame | |
Recall rate | ≥90% | |
Accuracy | ≥80% | |
Minimum target size | 32x32 @1080p | |
Number of tracked targets | ≥20 | |
Tracking jump rate | ≤15% | |
Servo control | ||
Course range | Nx360° | |
Pitch range | -120°-40° | |
Rolling range | ±45° |
Visible light | |||
Operating band | 0.4μm~0.9μm | Field of view | 62.13°x1.73° |
resolution | 1920x1080 | Detection range | People 11.1km, vehicles 20km |
focal length | 4.25mm~170mm | Identification distance | People 2.7 km, vehicles 11km |
Optical zoom | 40X | ||
Thermal imaging | |||
Working frequency band | 8μm-14μm | Field of view | 12.4 degrees to 9.9° |
Resolution | 640x512 | Detection range | Person: 1.8 km, Vehicle: 4.4 km |
Pixel | 12 microns | Identification distance | Person: 0.4 km, Car: 1.1 km |
Focal length | 35mm/F1.2 |
