Product Description
Overview

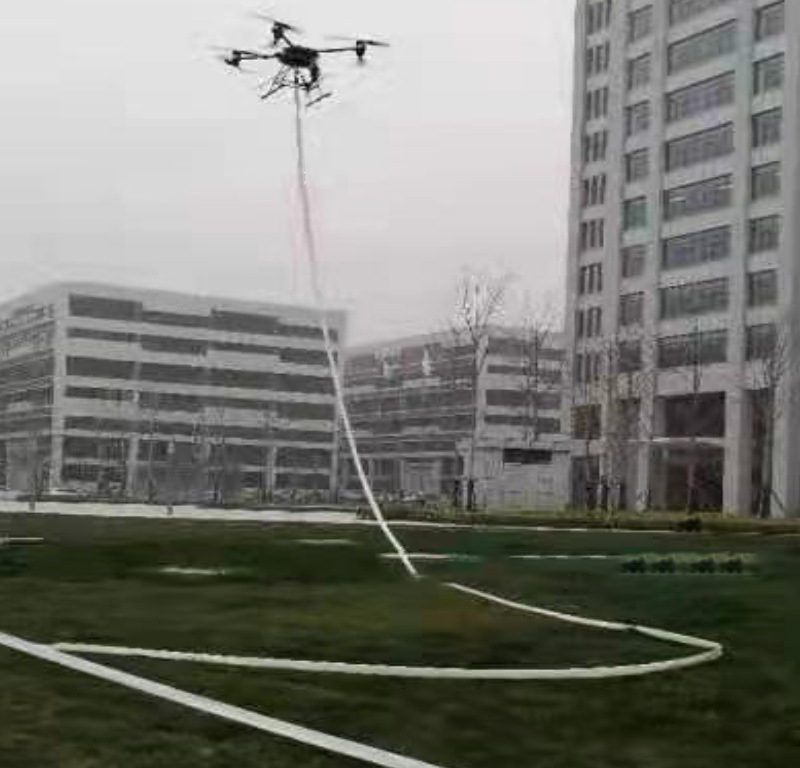

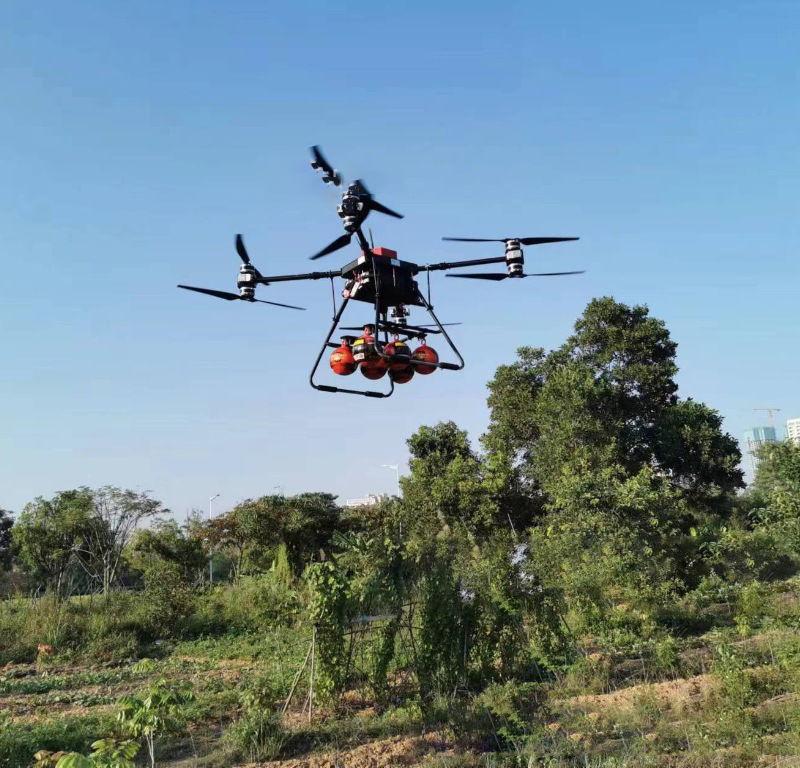

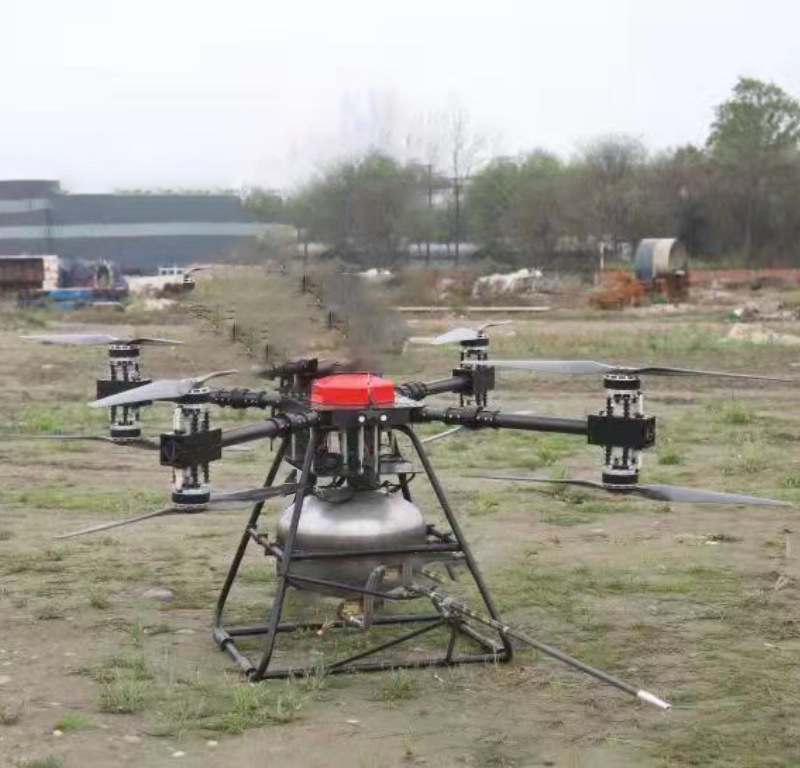

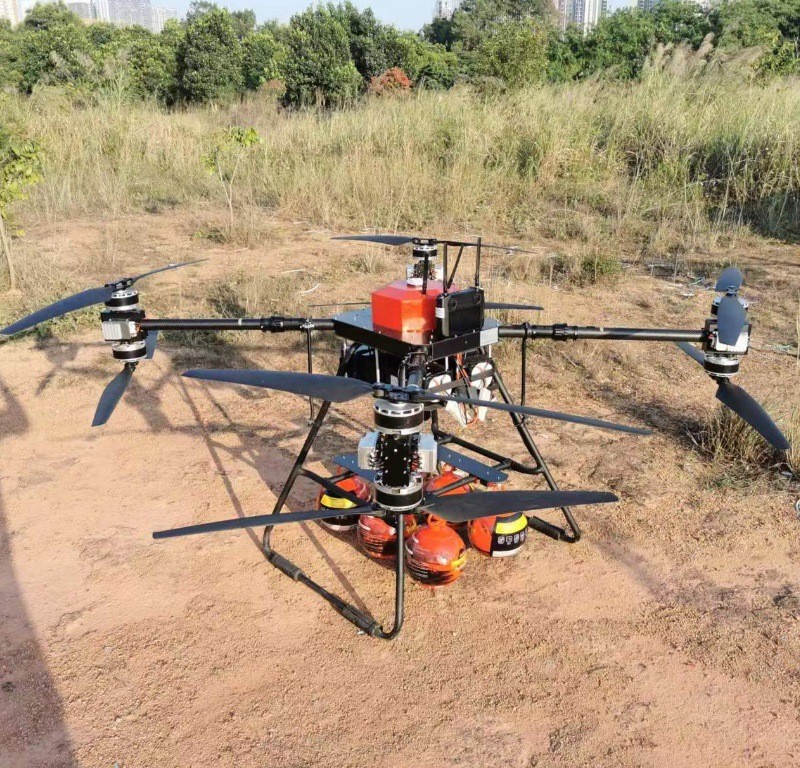

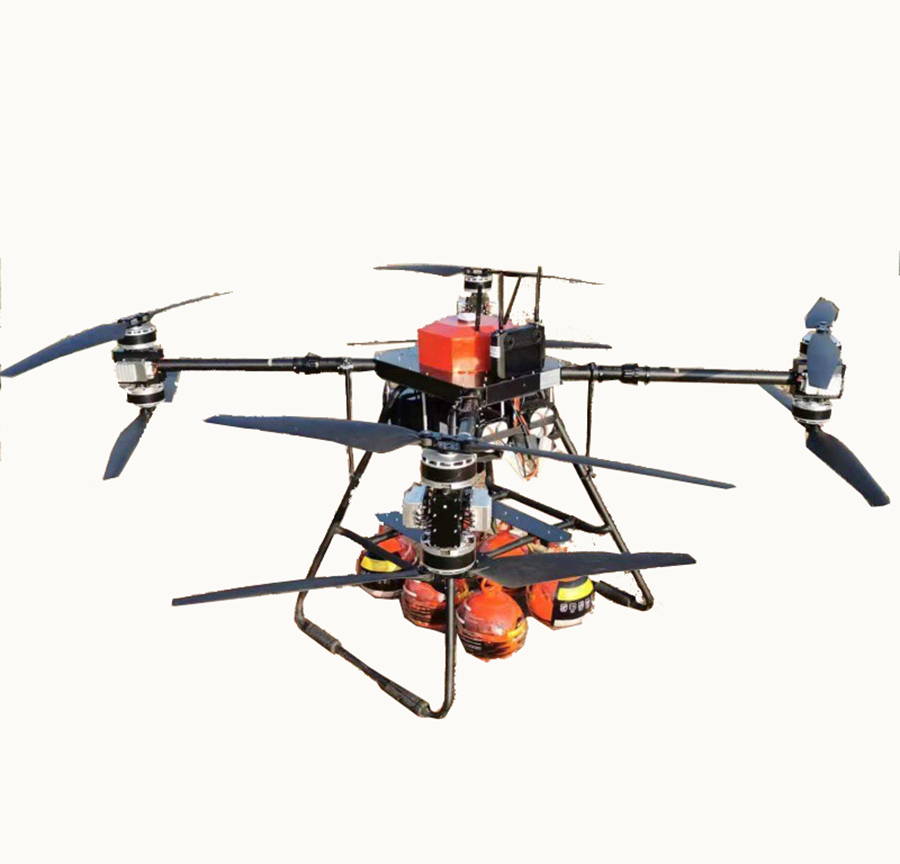

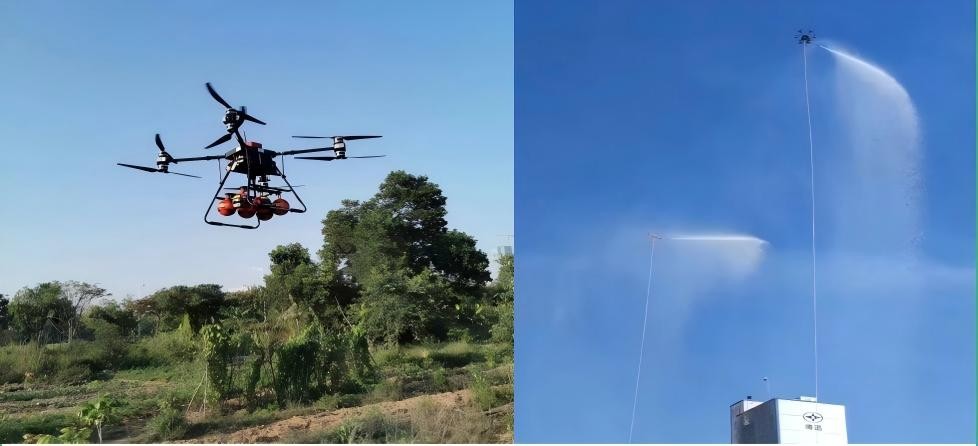

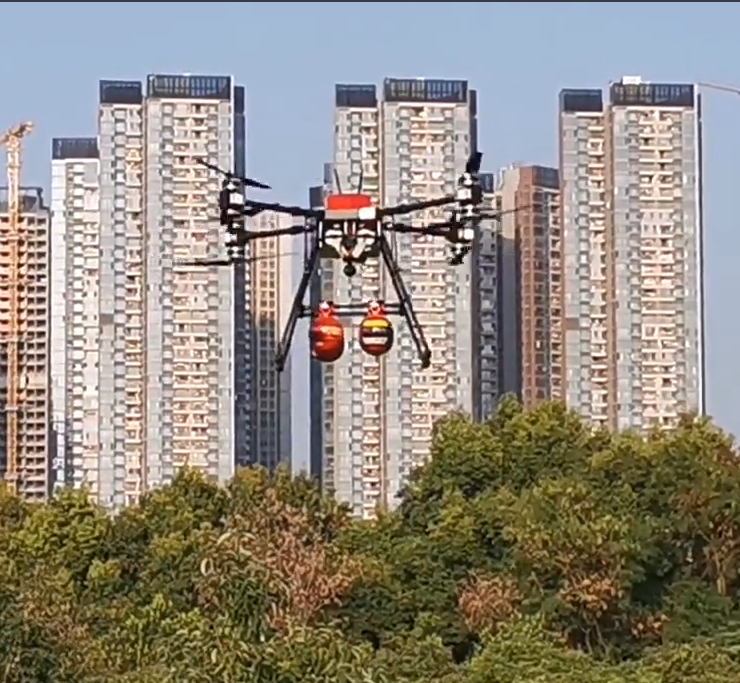

The YH-C29 HJ-XF60 is a firefighting drone engineered for powerful aerial intervention. It boasts a 120kg maximum take-off weight, enabling a substantial payload capacity for fire suppressants. With an operational flight altitude of up to 3000 meters, it is capable of tackling challenging fire scenarios. The drone offers an effective battery life of 12 to 35 minutes (depending on load), ensuring critical mission time. For rapid deployment and transport, it folds down to a compact 700mm800mm900mm.
Detailed technical parameters
Body material | High strength composi te carbon fiber | Body wheelbase size | 1980mm |
Collapse folding size | 480mm* 320mm* 500mm | Total weight of thedevice(including battery) | 55kg |
maximum take-off weight | 120kg | Maximum payload | 60kg |
Flight speed range | 16m/s | Maximum wind resistance | ≥6 on the Beaufort scale (or ≥8 on the Beaufort scale) |
battery capacity | 10000wh | Instantaneous load value of the body | 3.5G |
Operating spray gun pressure | 1.2m@3-5Mpa | Route planning Settings | app/pc route planning |
Work efficiency | 50 times that of manual cleaning | Distance of remote control for integrated data and graphics | 15km (open and no interference) |
Obstacle avoidance mode | Radar + visual omnidirectional obstacle avoidance | Camera resolution | 1080P |
Flight altitude | 3000m |
