Product Description
Overview

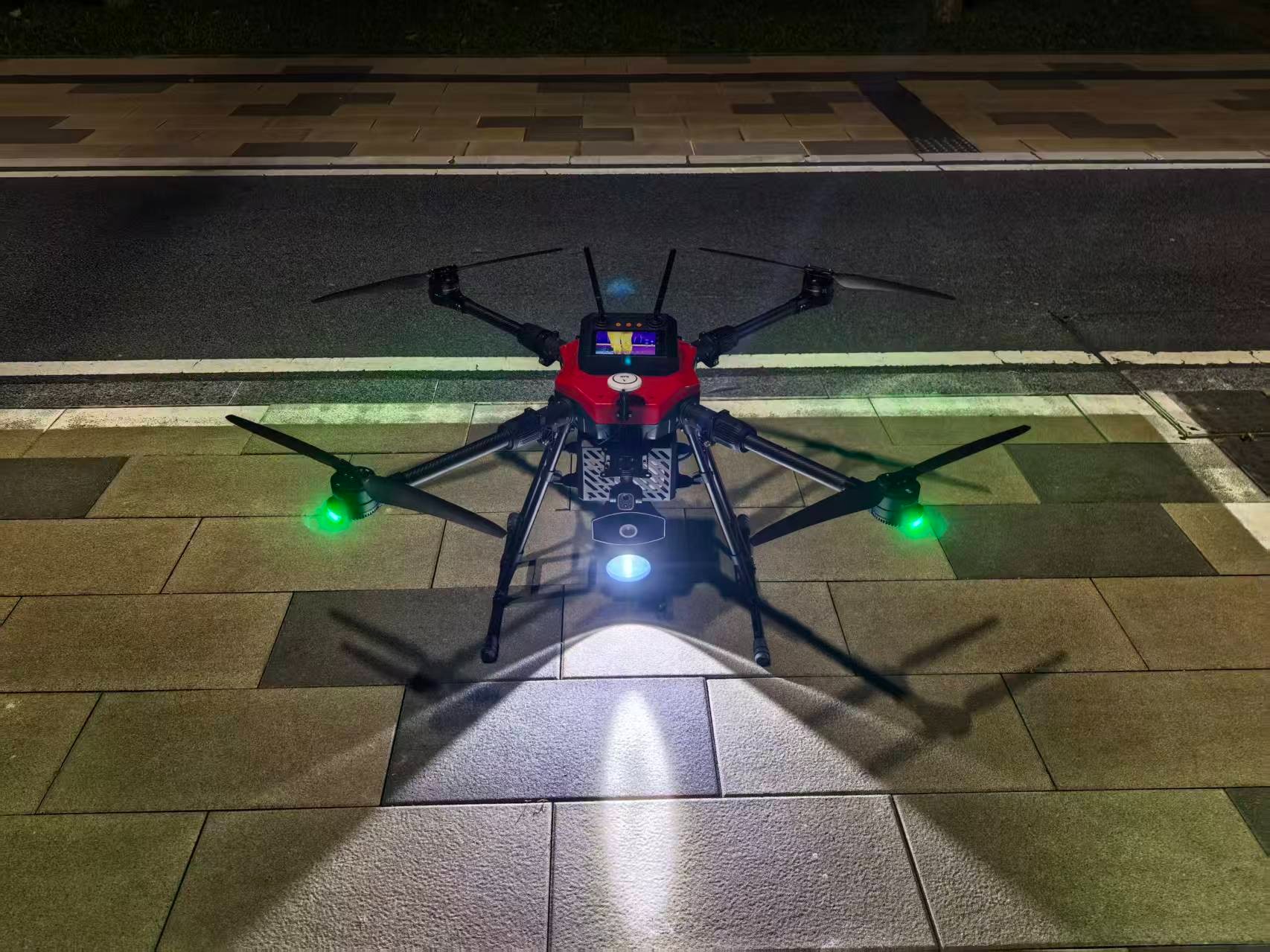

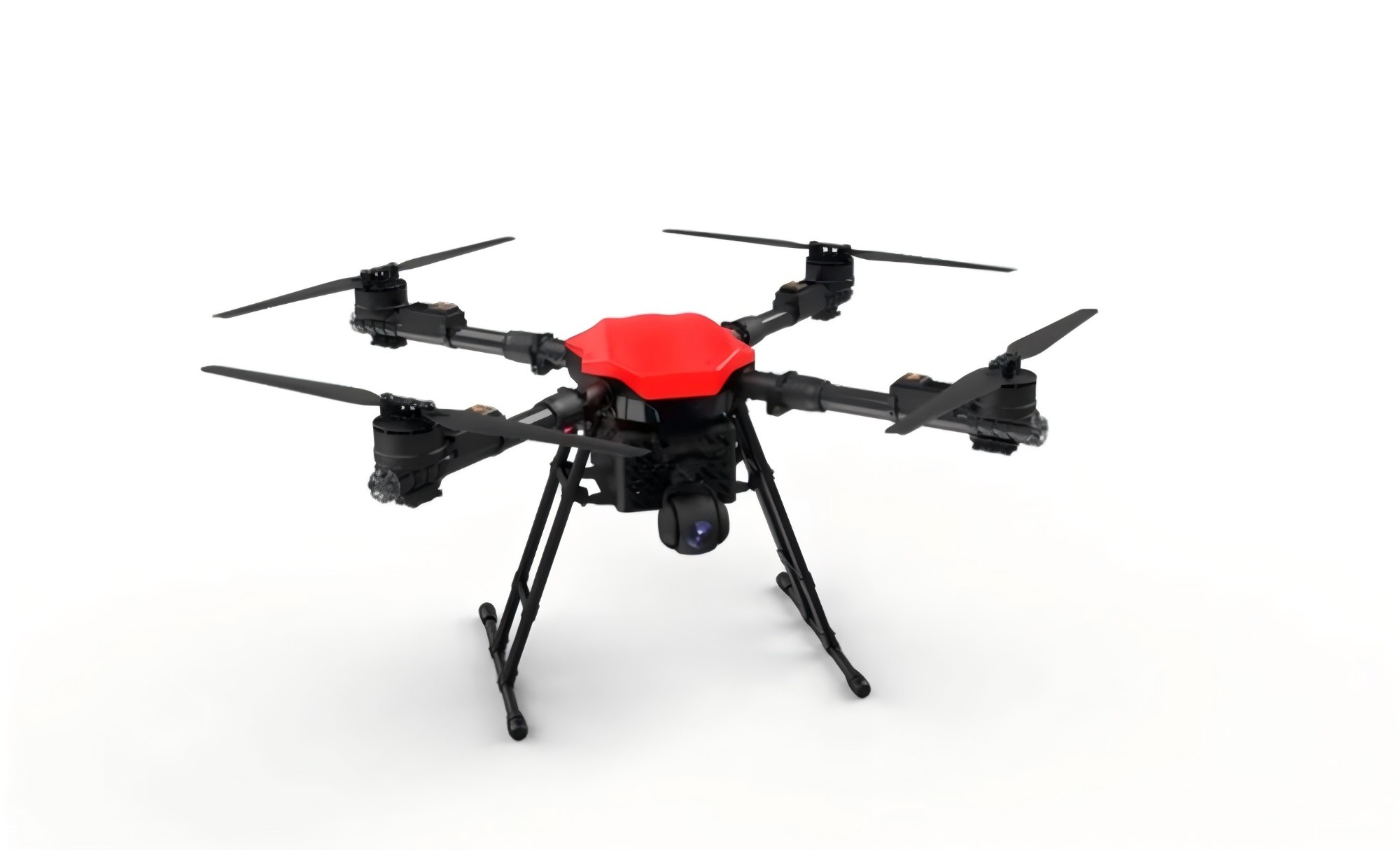

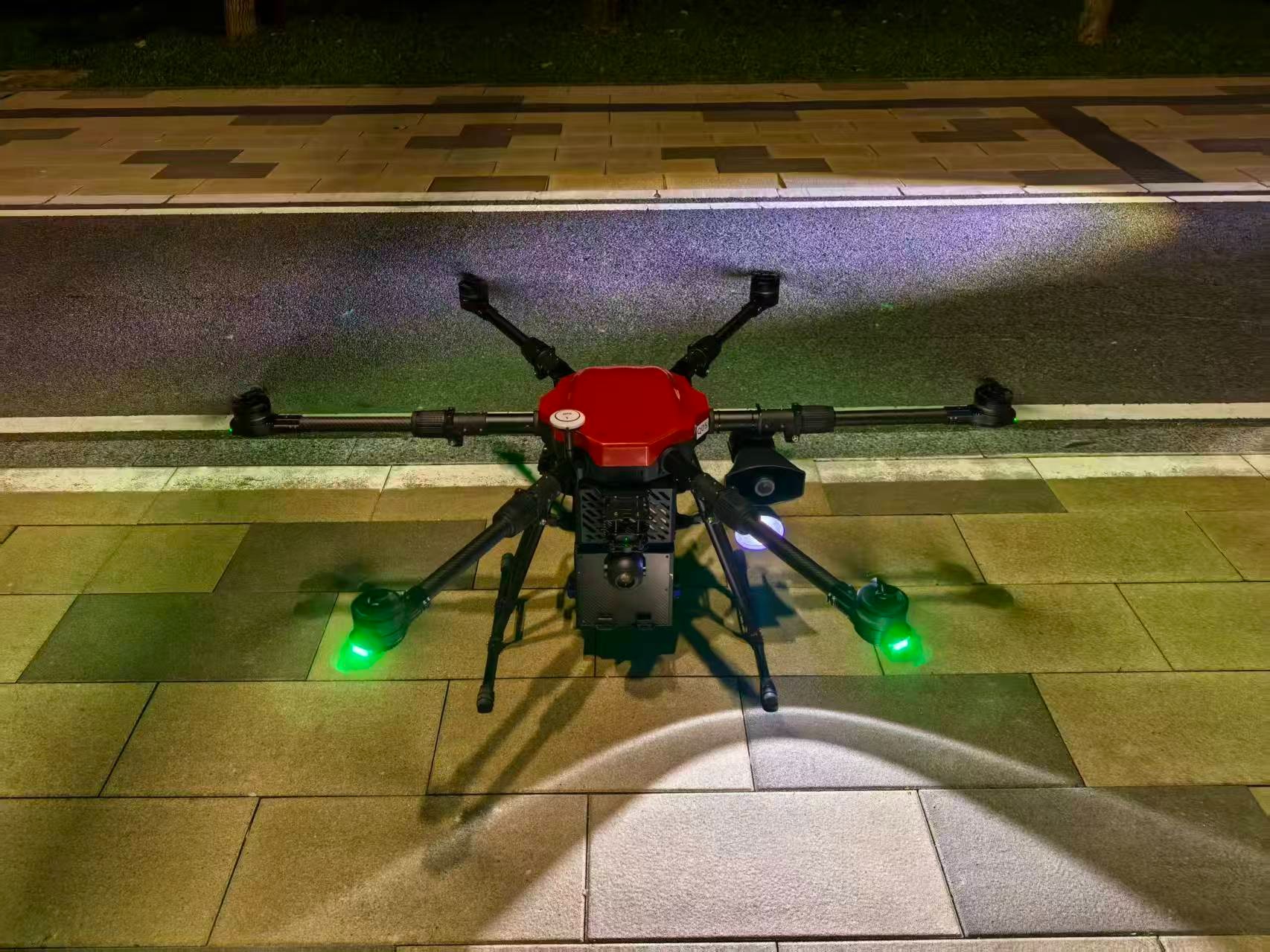

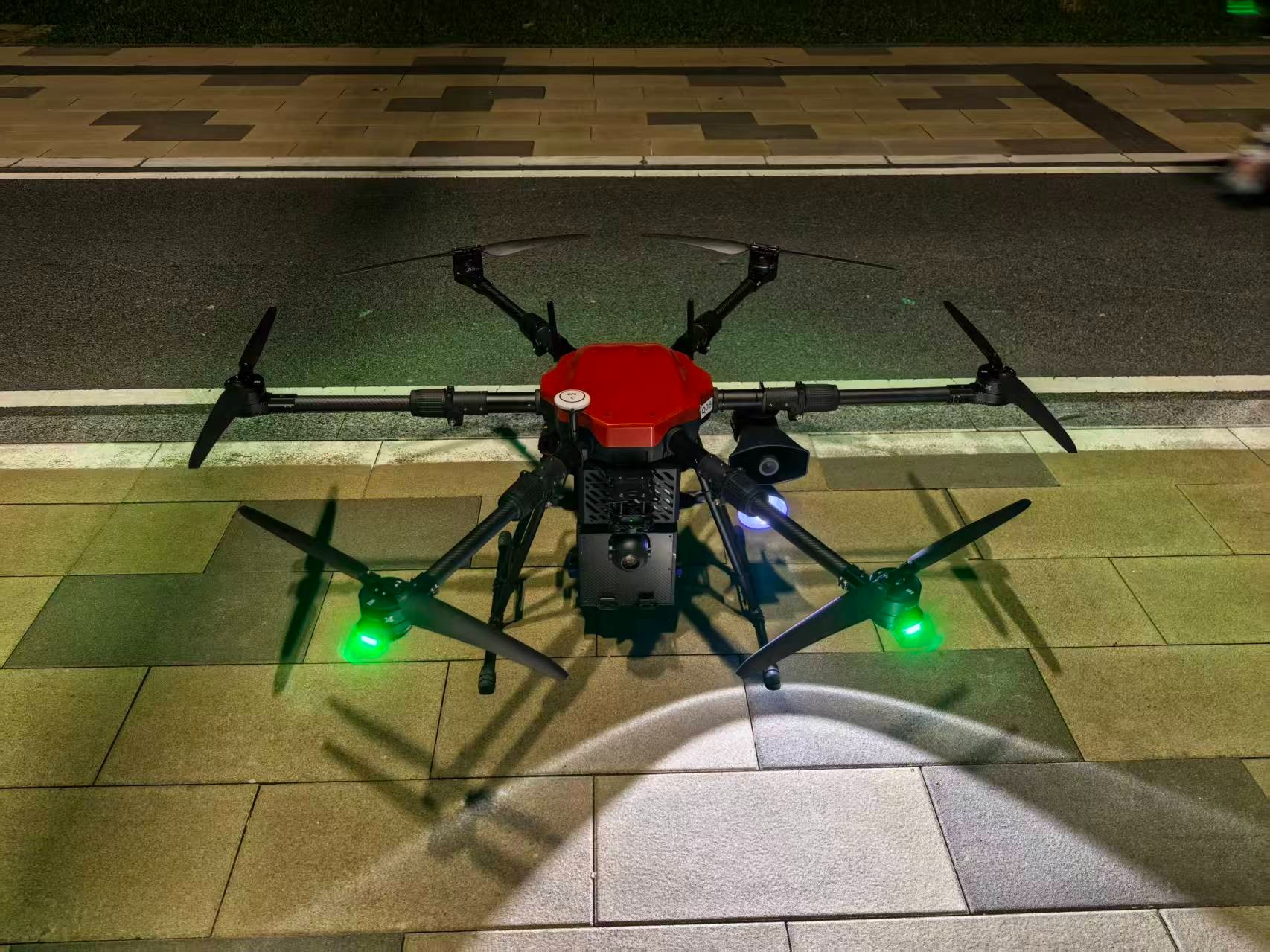

The YH-C26 HJ-D900 is a versatile reconnaissance and inspection drone designed for agility and precision. With a compact folding size of 320mm320mm420mm and a maximum take-off weight of 28kg, it offers high portability and capability. It carries a standard operational load of 5-6kg, powered by a 12kg battery. The drone ensures thorough observation with a 360° pan-tilt and a 1080P camera, while its rapid 6m/s vertical climb/landing rate enhances operational efficiency.
Detailed technical parameters
Body material | Carbon fiber +7075 aviation aluminum | Body wheelbase size | 990mm |
Collapse folding size | 320mm*320mm*420mm | Weight of the whole machine (including battery) | 15kg |
Maximum take-off weight | 28kg | Payload capacity | 12kg |
Standard operating load | 5-6kg | Battery life | ≥120 minutes (long battery life) ≥80 minutes (standard battery life) |
2kg camera load endurance | ≥100 minutes (long battery life) ≥60 minutes (standard battery life) | Battery voltage capacity | 12s,35000mAh (pure solid-state) |
Airplane mode | 1 Manual Flight | Flight control system | Triple-core IMU, dual GNSS backup, and anti-loss-of-control return-to-home protection |
Flight hover accuracy | ≤0.1m | Classification of wind resistance | ≥6 levels, instantaneous 8 levels |
Maximum flying speed | 35 m/s (manual limit speed) | Flight Sea Level | 6000 meters |
Vertical climb/landing rate | 6m/s | Remote control distance | 15km (visual range) |
Airplane mode | Manual/GPS/Autonomous | Flight status information is displayed | APP Smart Ground Station |
Operating temperature of the whole machine | -20 to 55 degrees | Supports extensions | Transportation/Fire Protection/Communication/Rescue |
