Overview

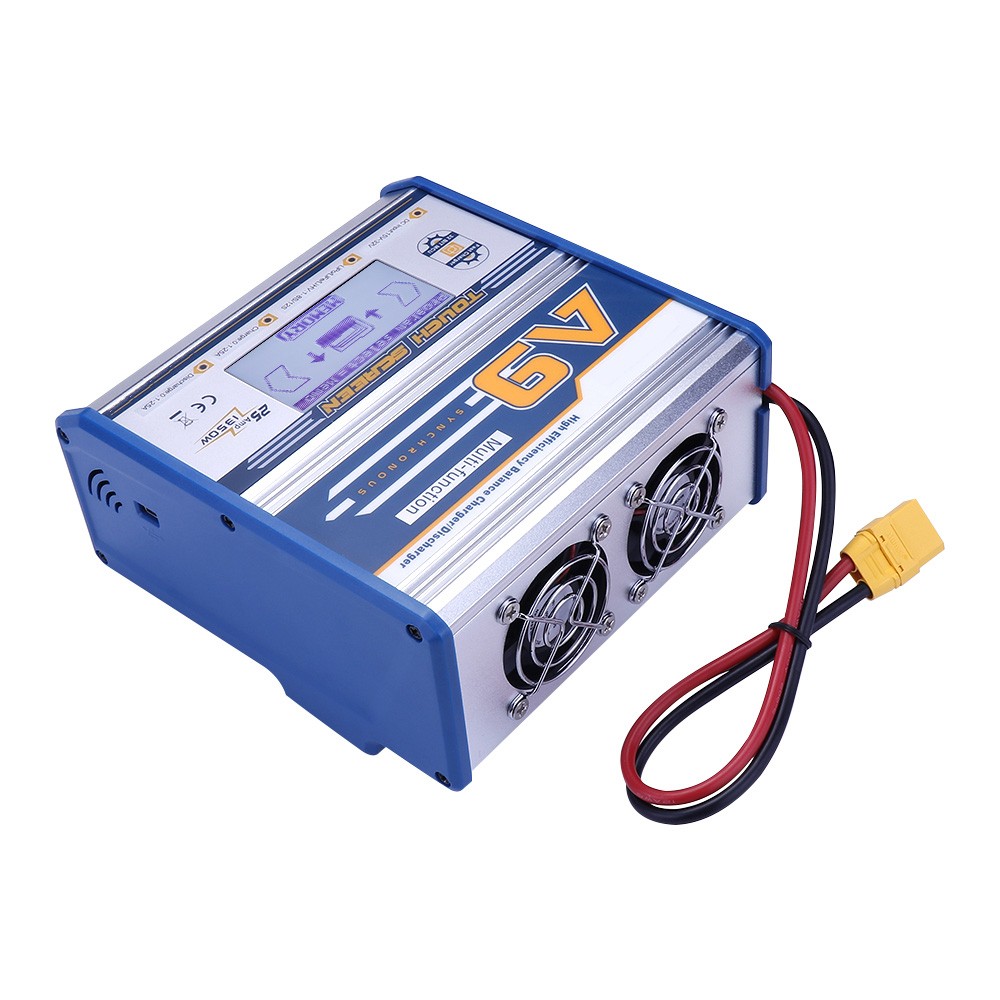

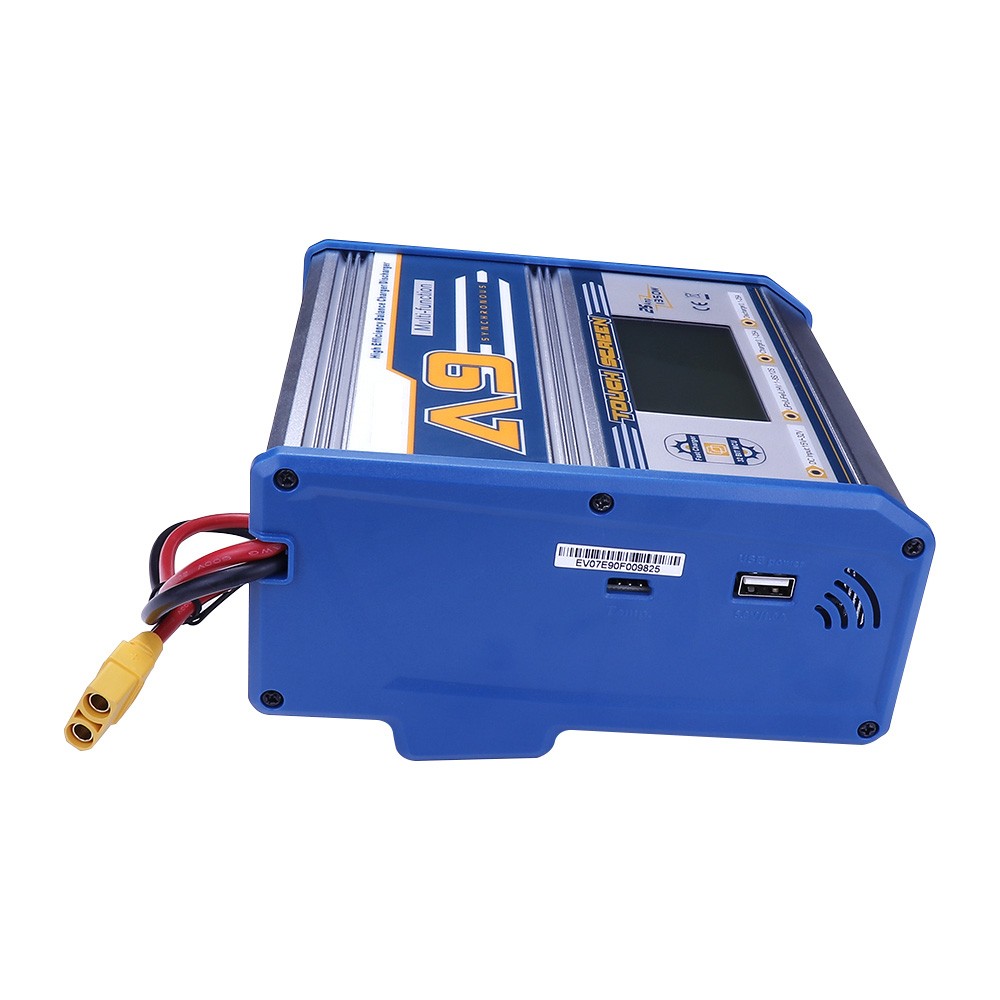

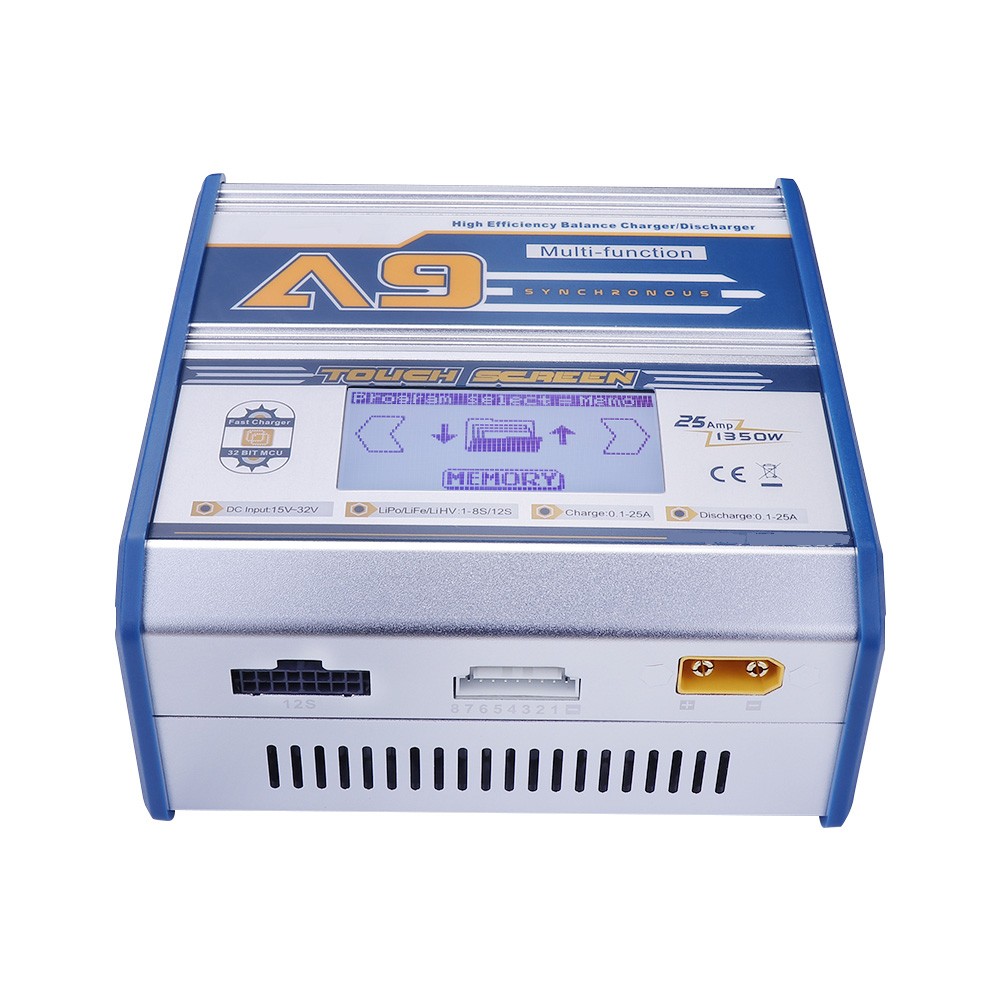

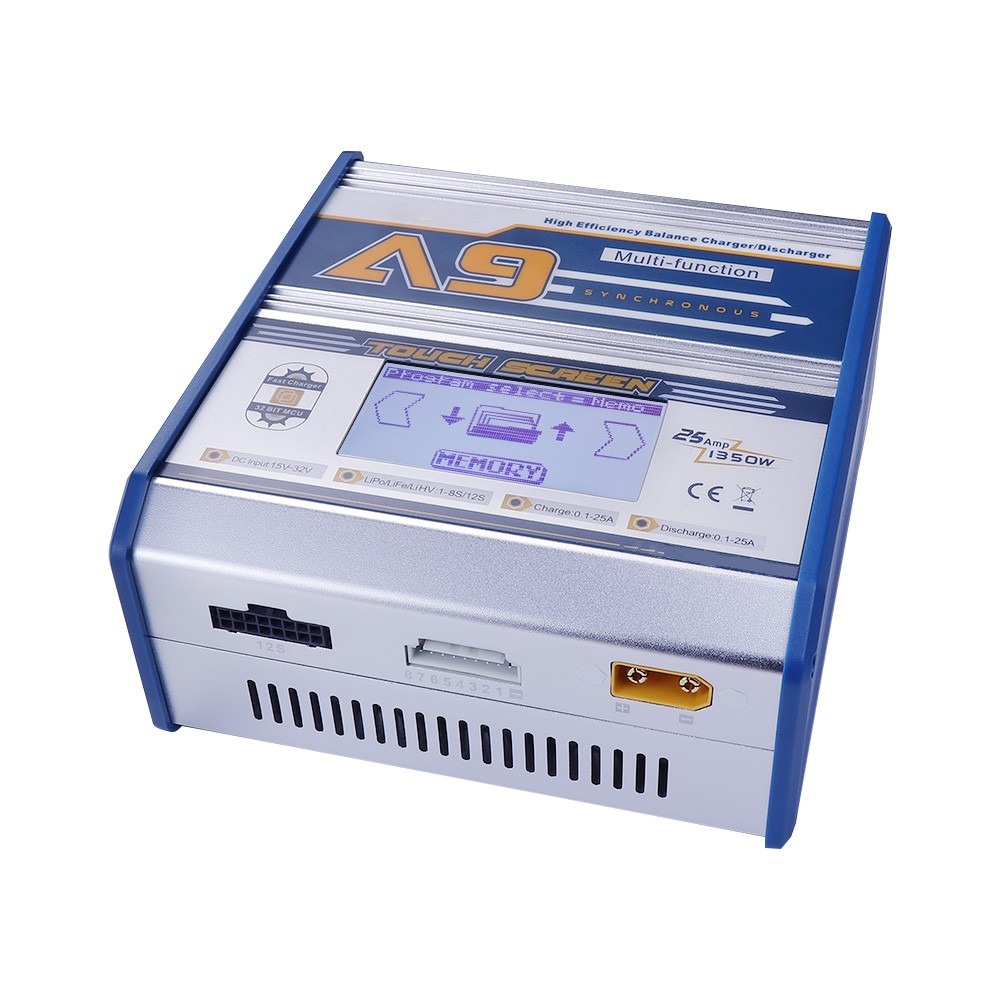

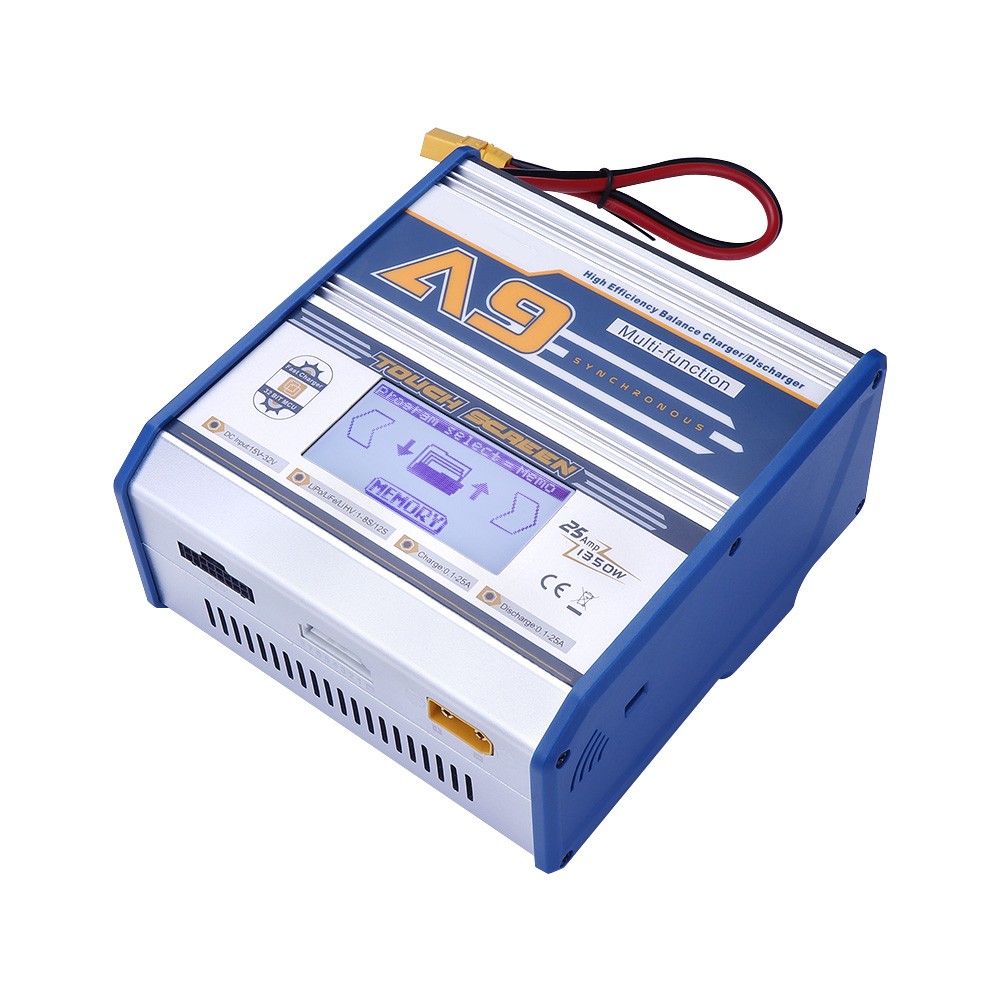

A9 - High power balance charger, fast charging speed, high balance accuracy, small energy consumption, battery type selection, battery number selection, simple operation, light and beautiful appearance. The product adopts a synchronous rectification low-loss and high-efficiency energy conversion design, which can meet the requirements of long-term high-current charging. In addition, the structural design is exquisite, and the heat dissipation channel design of the product is reasonable, which can effectively meet the heat aggregation and dissipation of high-power products and ensure the continuous, stable and reliable operation of the product.
Product specification
Work pattern | Max. power | Input voltage | Combined regulation | Current |
Charging | 1350W | DC | ±10mV | 25.0A |
Discharge | 100W | ±10mV | 10.0A | |
Recovery of | 1350W | ±10mV | 25.0A |
Hightemperature | +40℃ | Thermalshock | -25℃ to75℃,3min |
Lowtemperature | 0℃ | Shellmaterial | Metal |
Hightemperature | +70℃ | Outlinedimension | 154×162×84mm |
Lowtemperature | -20℃ | Weight | 1450g |
Output characteristic or charge stages | |||
No | Item | Technicalspecification | Remark |
1 | CC(constantcurrent) | 0.1~25.0A | |
2 | CV(constantvoltage) | 50.4V↓ | |
3 | Floatstage | ⁄ | |
4 | BatteryType | LiPo/LiIon/LiFe/LiHv/NiMh/NiCd/PB | |
5 | Batterycellcount | 1~8S/(12S) | |
6 | Unitcellvoltage | 4.20V | Adjustable |
7 | PrechargeTime | 0-10Min | Adjustable |
8 | DeltaPeak | 5~20mV | Adjustable |
9 | Temperature protection | 80℃ | Adjustable |
10 | Safe time | 1~720Min/OFF | |
11 | capacity limitation | 0.1~99.9Ah/OFF | |
12 | DCinputvoltagelimit | 15~32V | |
