Overview

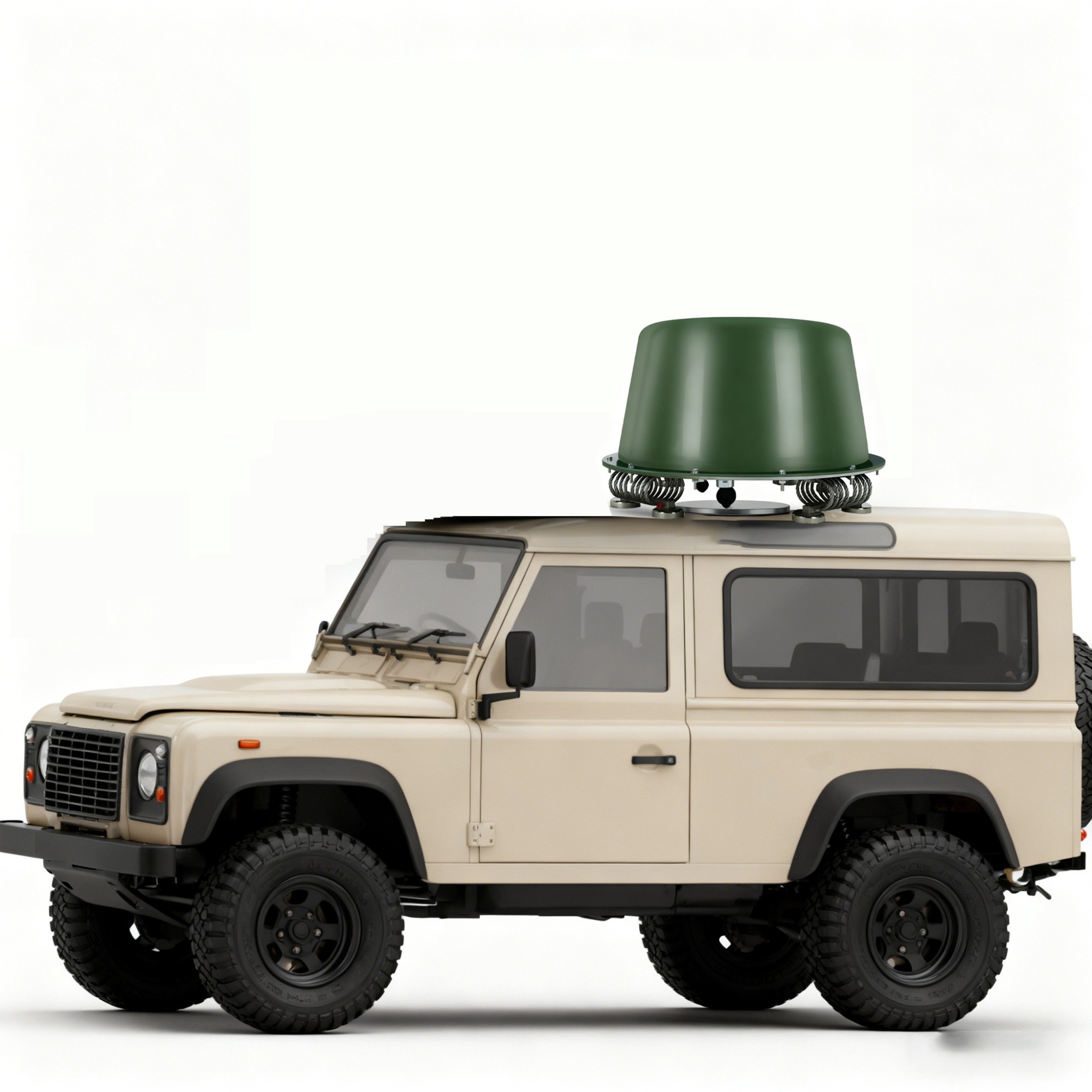

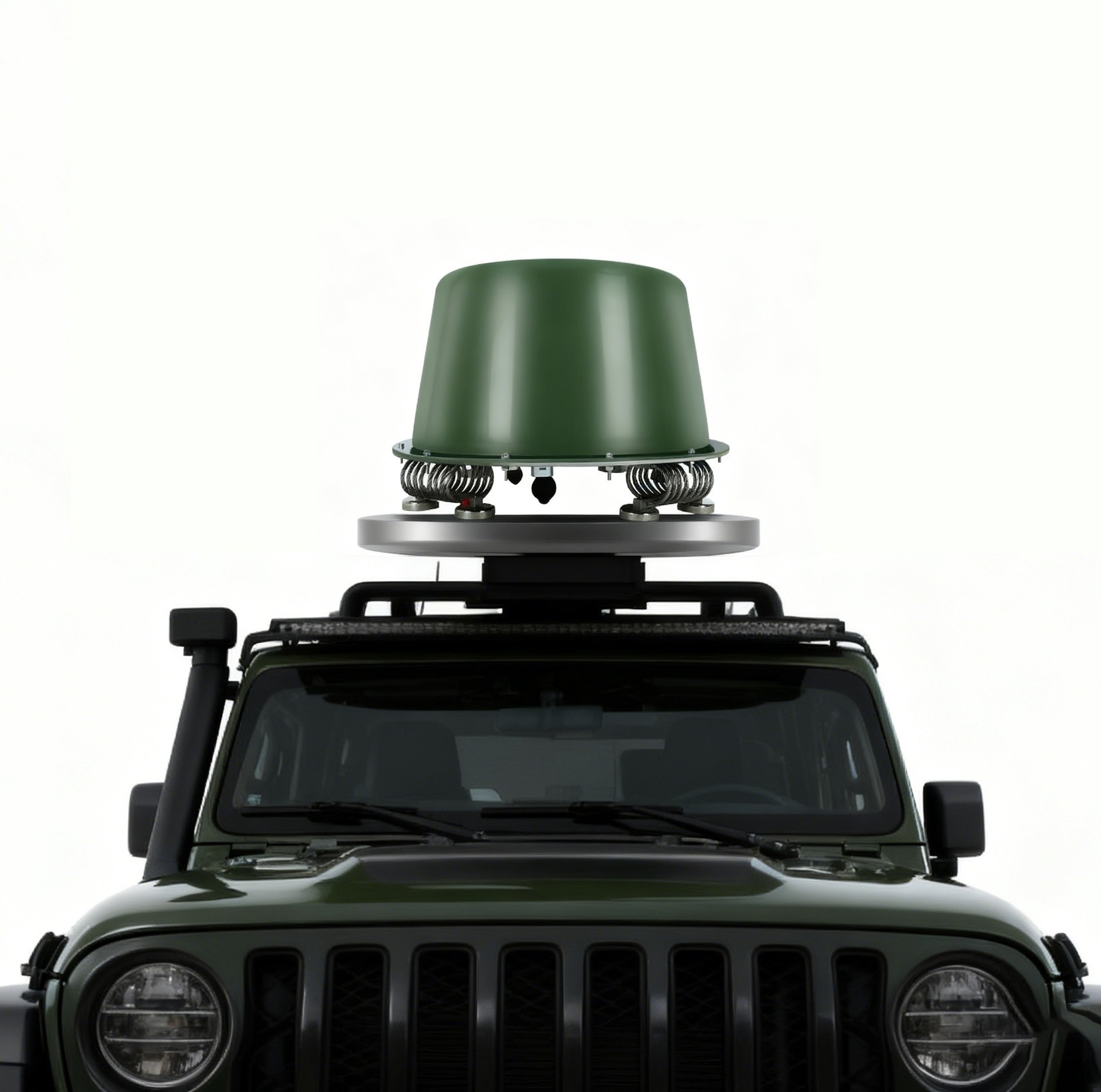

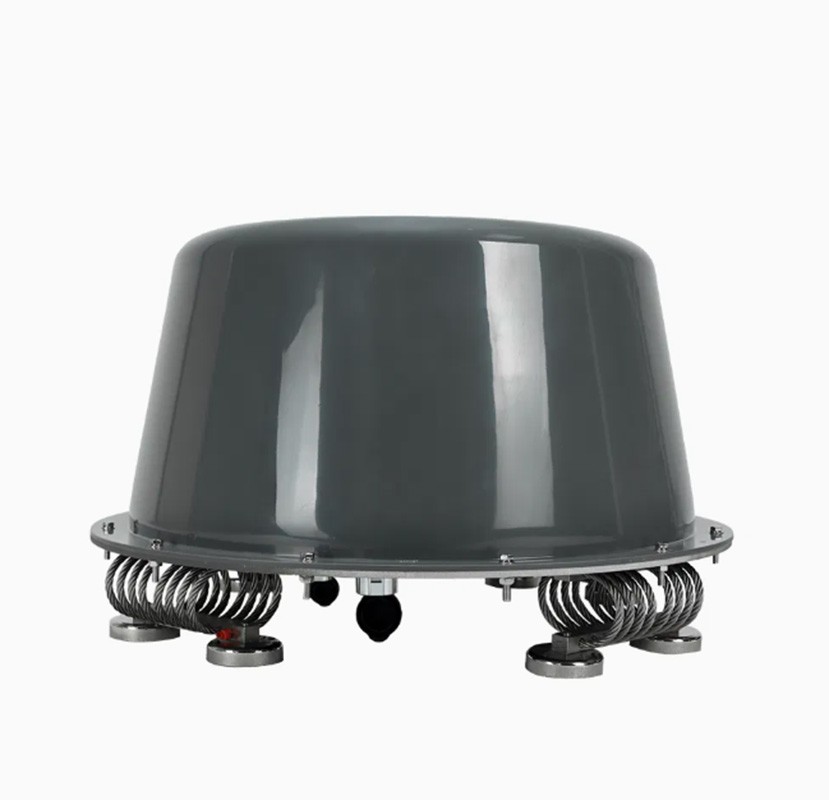

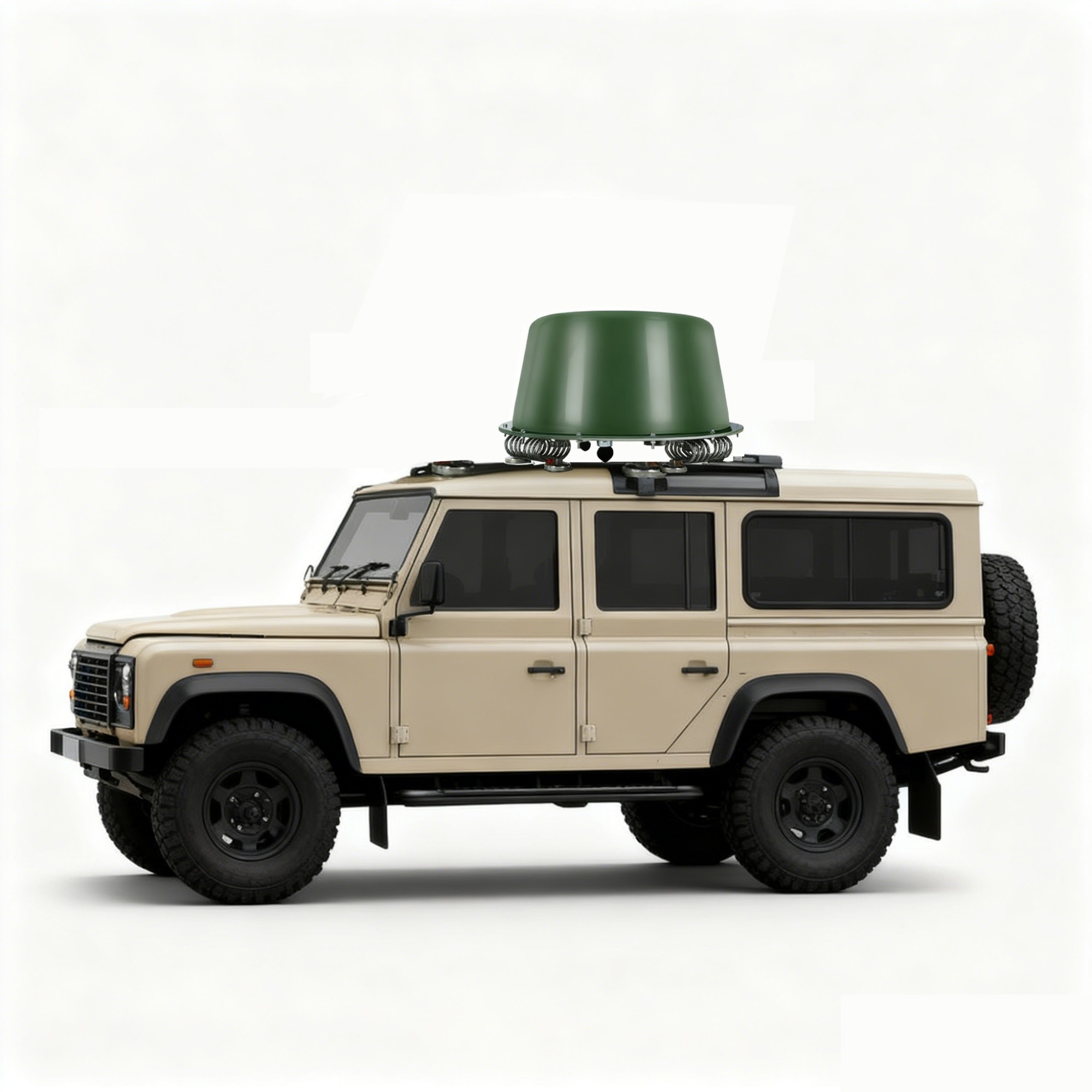

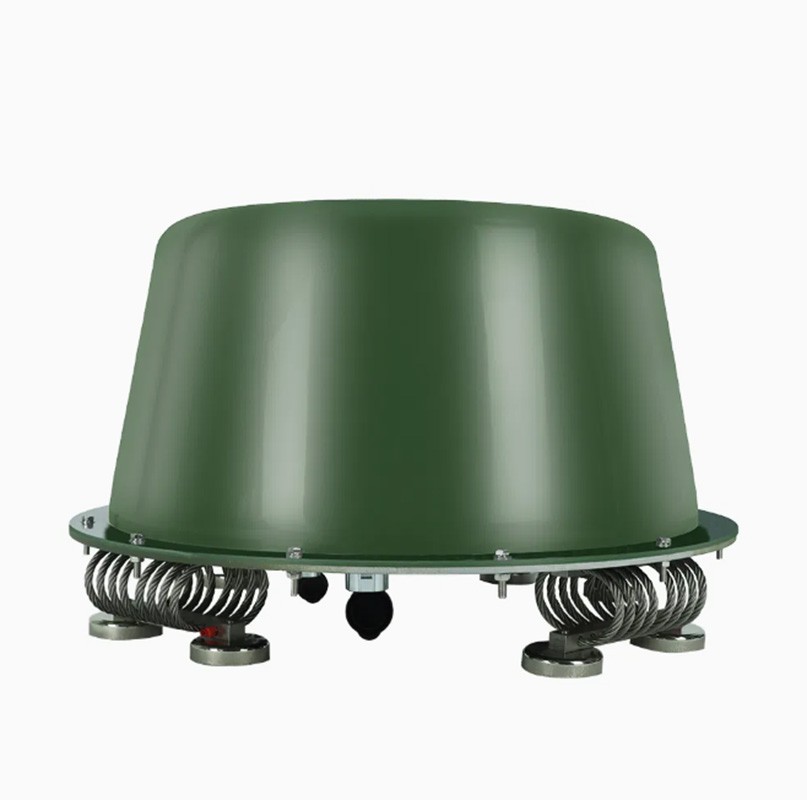

The 400W Vehicle-mounted Omnidirectional Drone Signal Management Equipment is a professional-grade signal management solution specifically designed for mobile environments. Operating in the 400-5900MHz frequency band with 400W output power and omnidirectional antenna design, it provides 360-degree signal coverage around the vehicle without blind spots. Through precise signal management technology, it effectively ensures the security requirements of moving vehicles and their surrounding areas.
Parameter
Working Frequency | 400-500/500-600/600-700/700-840/840-1000 |
Output Power | 400W in total |
Power consumption | About 800W |
Antenna Gain | 3-8dBi |
Antenna working angle | Omni 360°vertical; 65°horizontal |
Jamming distance | 300-2000m(Depends on jamming ratio/RC power.etc) |
Battery | 1000WH battery,1-1.5H continuous working |
Power supply | DC 24-29V External battery, battery charged by AC220V |
Dimension | Φ60cm*35cm |
Weight | 20KG |
