Product presentation

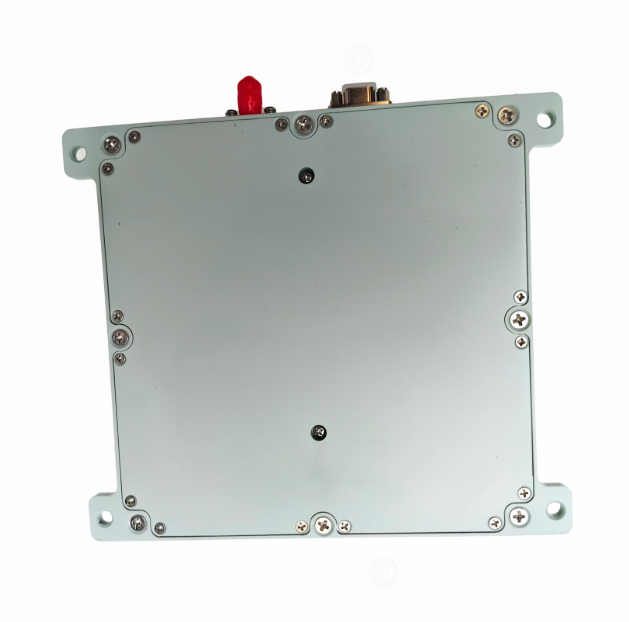

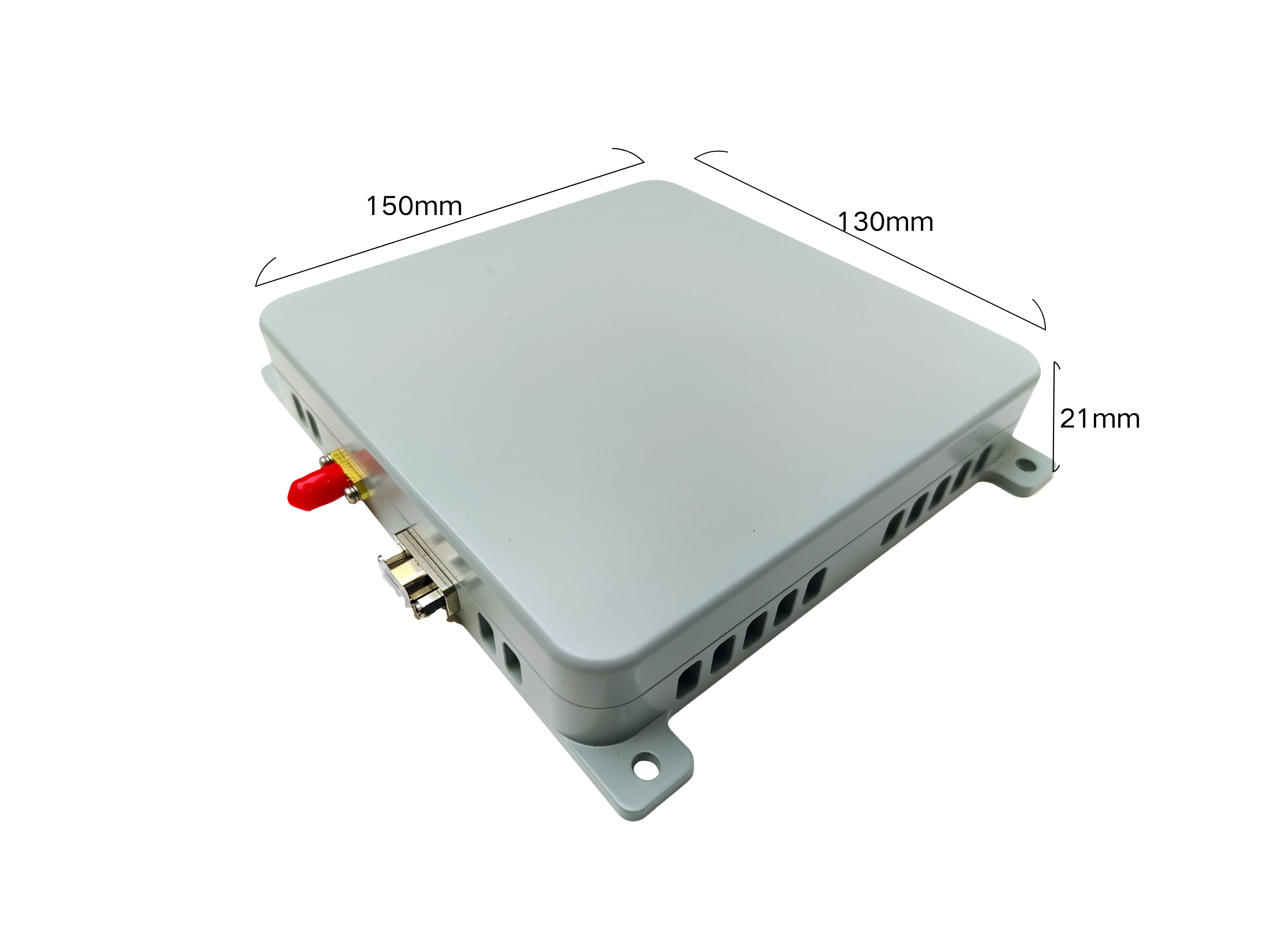

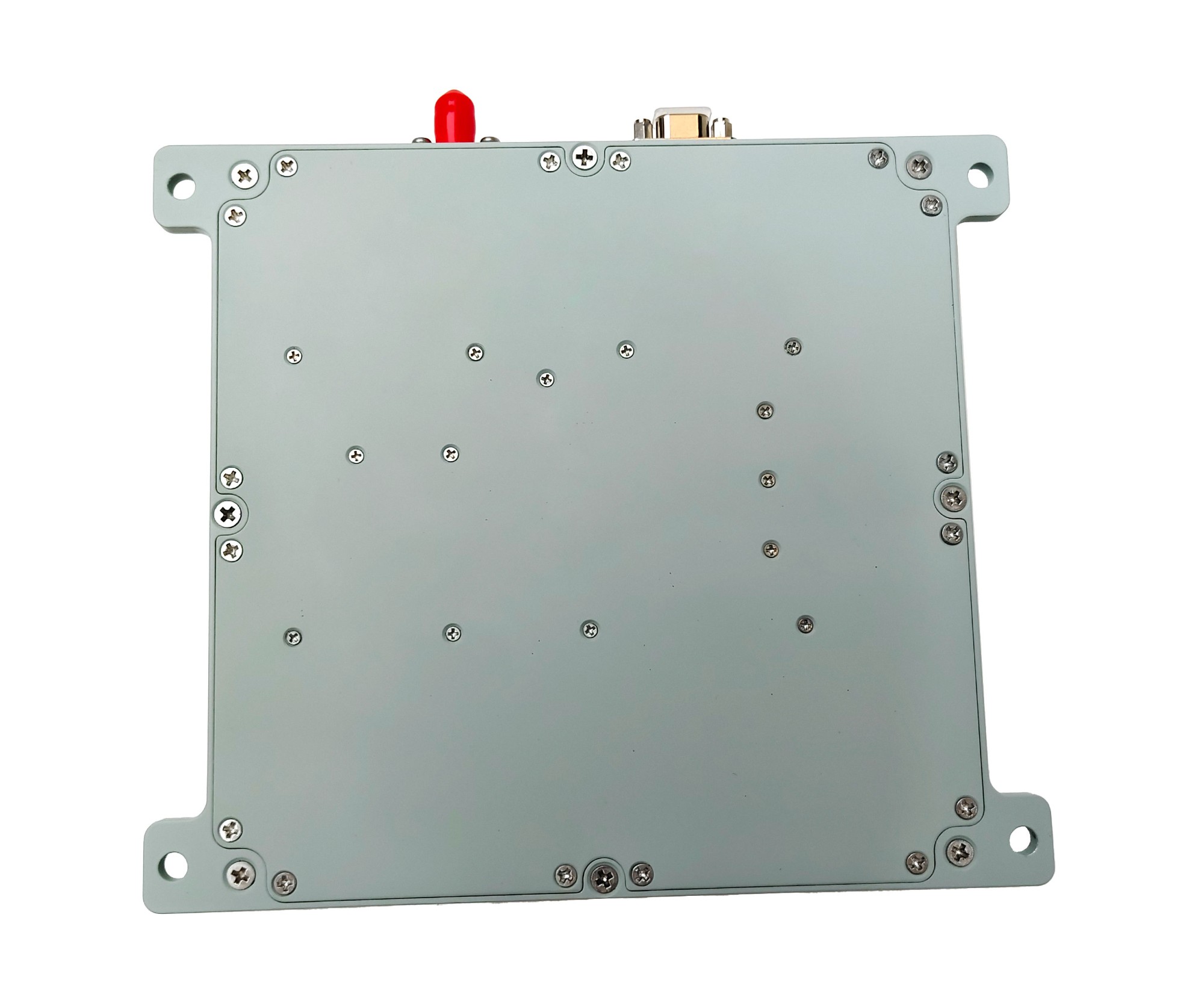

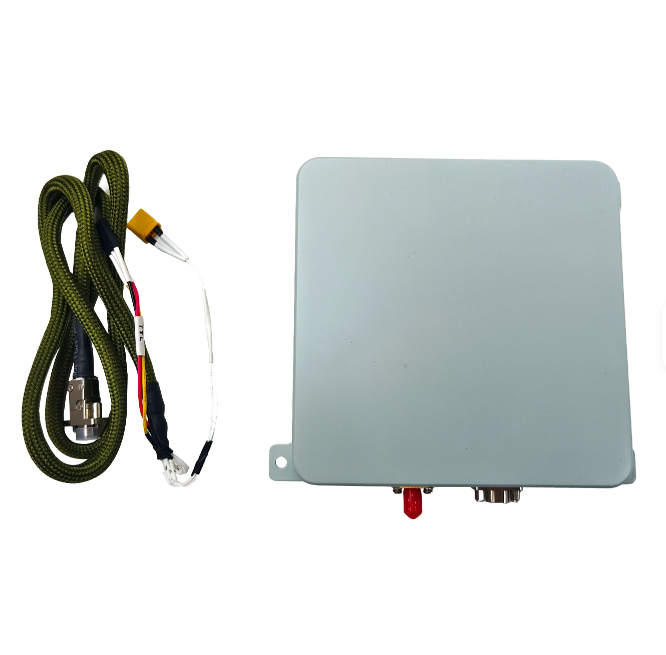

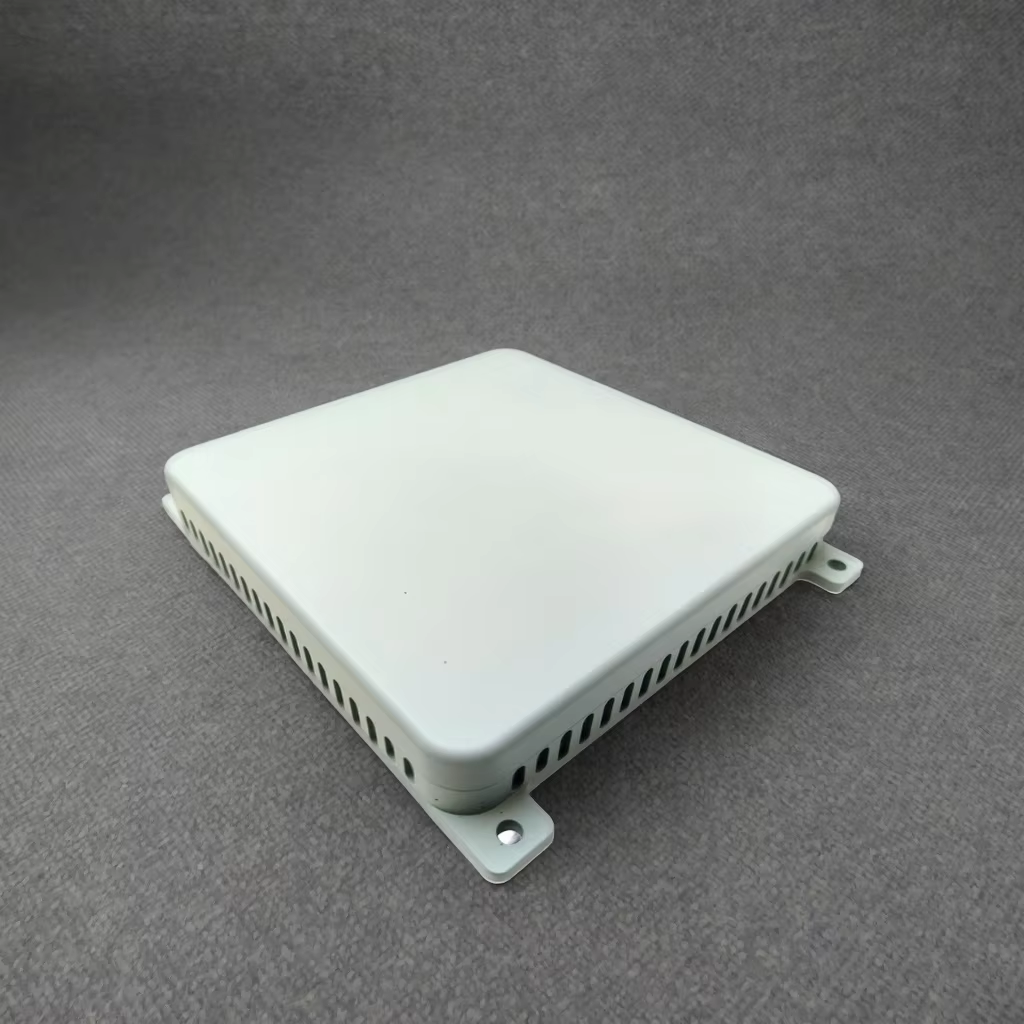

The product model is TX-009Pro-8CH-BD-WG-DT: dual-band 8-channel anti-jamming, it is a miniaturized satellite navigation anti-jamming integrated device designed for civilian drones and industry users, supporting the reception of dual-band signals from BeiDou-2, BeiDou-3 RNSS B1/B3, and GPS L1,featuring dual-system anti-wideband interference capability, capable of withstanding up to 3 jamming signals. Internally integrated antenna arrays, anti-jamming components, and satellite navigation receivers serve reliable navigation applications such as drones and unmanned vehicles, protecting user terminals from various unintentional and malicious attacks, significantly enhancing PNT information security.
Behaviour of electricity
Working frequency | BDS-B3:1268.52MHz±10.23MHz | Timing accuracy | ≤100ns |
Anti-interference performance | Unidirectional interference: ≥ 105dB | Working voltage | Input voltage 5~17V |
Positioning accuracy | Horizontal≤1.5 meters | Power consumption | ≤17W |
Speed measurement accuracy | ≤0.2 meters/s |
