Yh-F08 Tx-2504 Satellite Navigationanti-Jamming All-in-One

Yh-F08 Tx-2504 Satellite Navigationanti-Jamming All-in-One

Timing Accuracy:≤100ns(95%)
Working Voltage:Input Voltage 6~33V
Power Consumption:≤25W

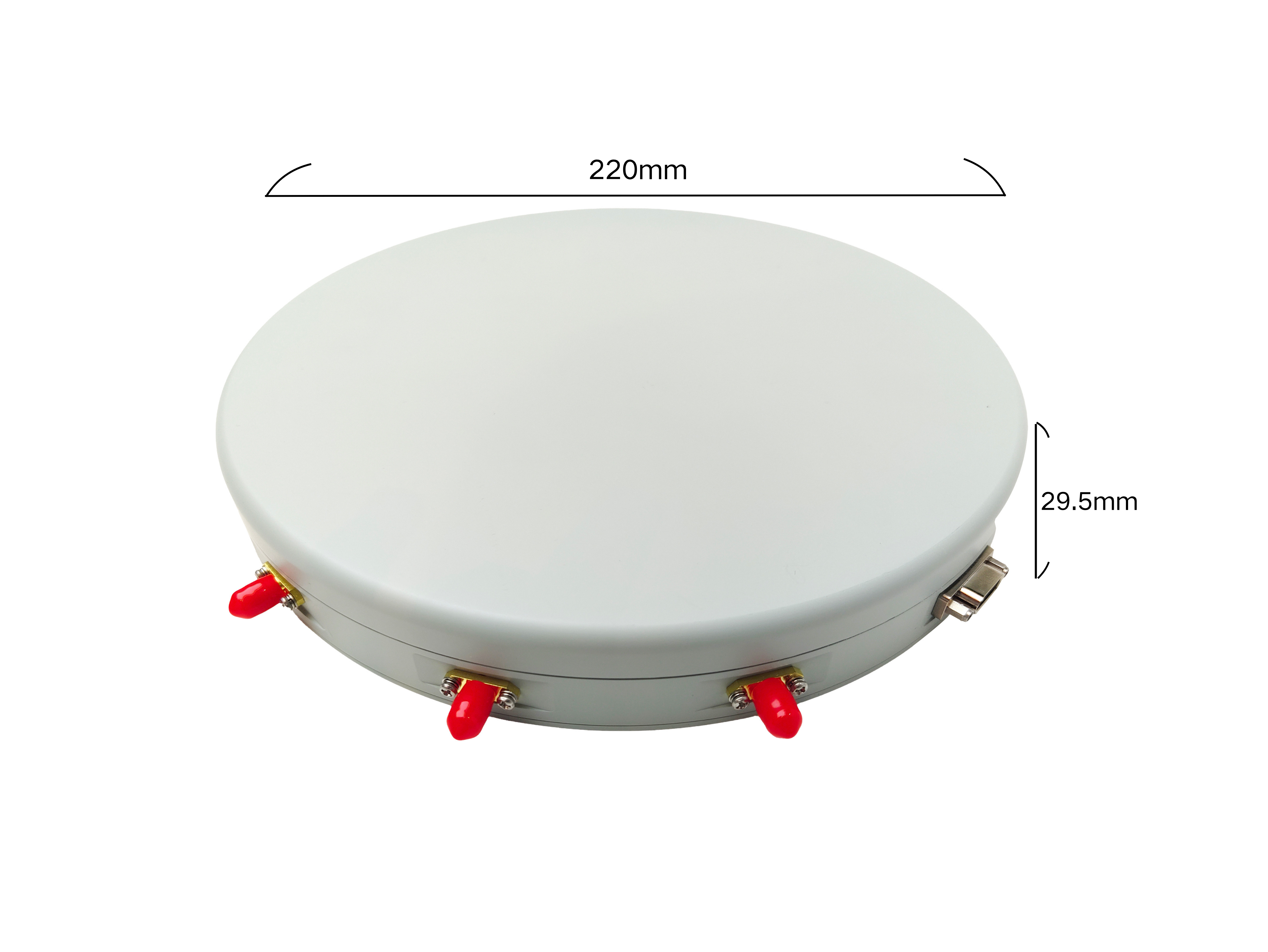

Appearance Size:φ220*29.5mm
Weight:≤1200g
Color:French Grey
Operating Temperature:-40℃~+55℃
Relative Humidity:Temperature 40℃; Humidity: 96%
Transport Package:Cardboard Box
Specification:Plastic products

INQUIRY made-in-china

Product Description:

Product presentation

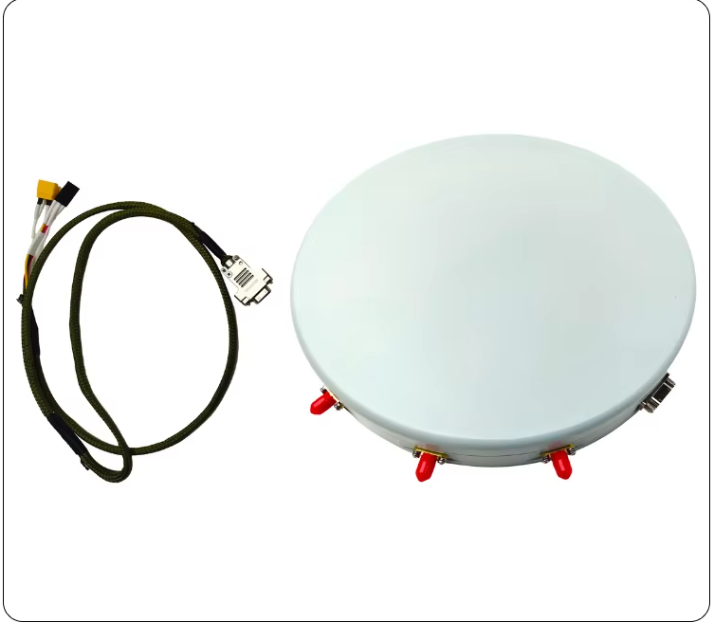

The miniaturized 7-element multi-system satellite navigation anti-jamming integrated device is a compact satellite navigation anti-jamming integrated device designed for civilian drones and industry users. It supports BDS + GPS + GLONASS + GALILEO, with anti-broadband jamming capability and a maximum interference resistance of 6. The device integrates an antenna array, anti-jamming components, and a satellite navigation receiver, featuring miniaturization, lightweight design, and low cost.

Behaviour of electricity

Working frequency	BDS-B1:1561.098MHz GPS-L1,GAL-E1:1575.42MHz GLO-G1:1602MHz	Timing accuracy	≤100ns
Anti-interference performance	Single interference dry signal ratio: ≥110dB, three interference dry signal ratio: ≥100dB, six interference dry signal ratio: ≥90dB	Working voltage	Input voltage 6~33V
Positioning accuracy	Level <1.5 m	Power consumption	≤25W
Speed measurement accuracy	0.2 m / second (95%)	Anti-spoofing performance	Output residual spoofing signal CN0: less than or equal to 20dB
