Overview

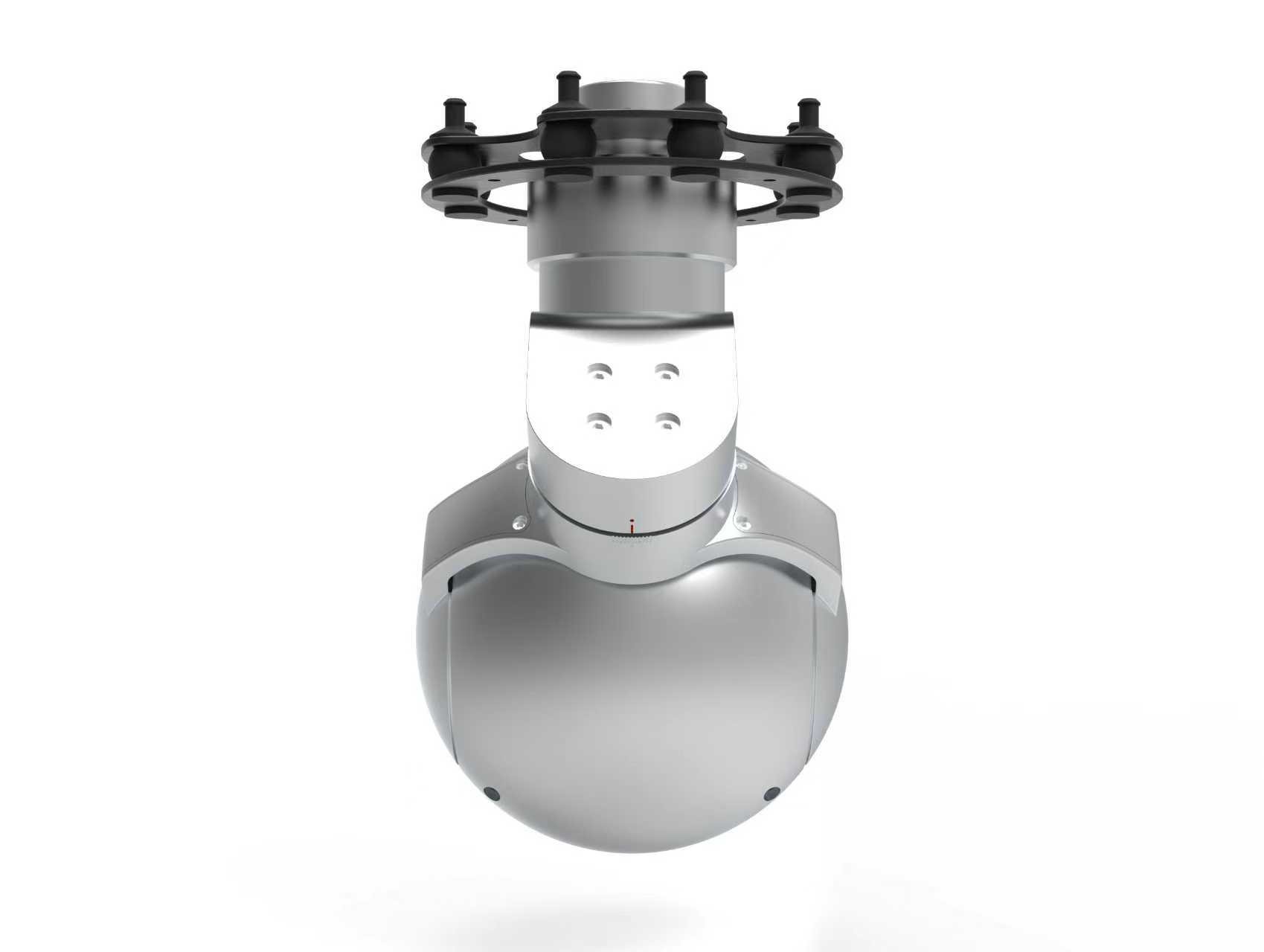

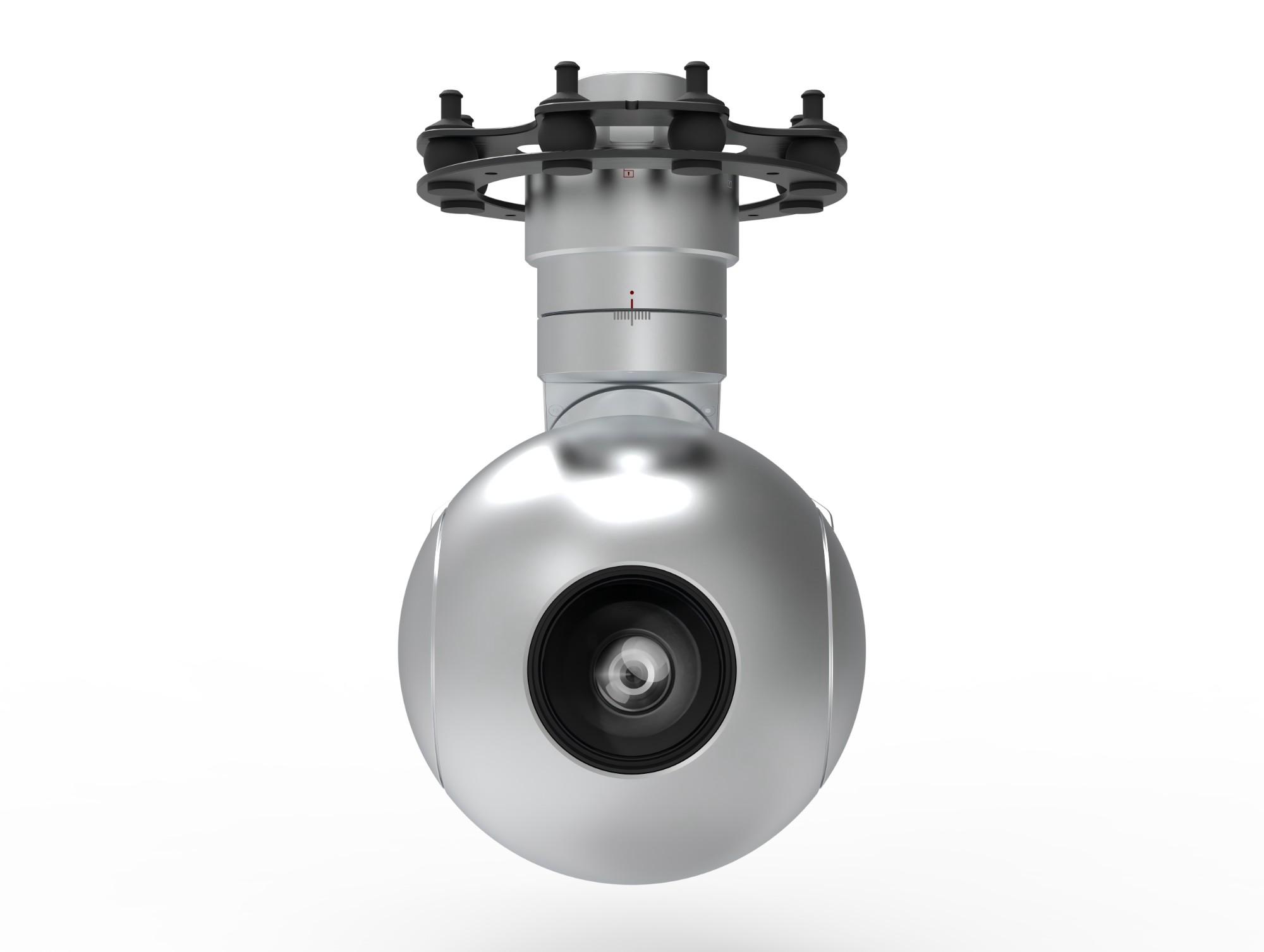

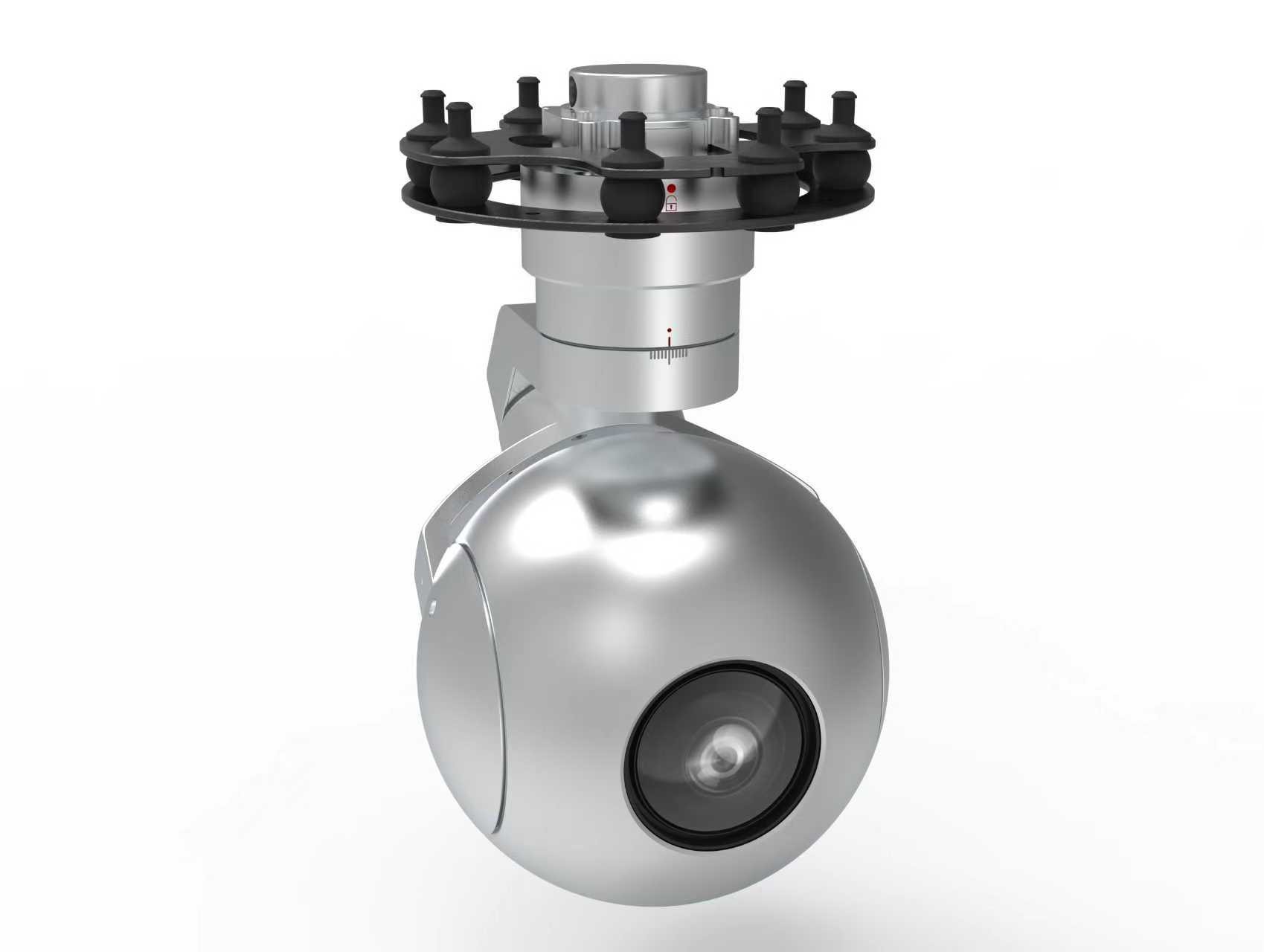

The L40 intelligent electro-optical pod adopts a three-axis servo stabilization platform and achieves stable imaging under complex on-board motion postures through a high-precision servo control system. The system integrates a 40x visible light camera. This product is compatible with various small and medium-sized rotorcraft/fixed-wing unmanned aerial vehicles and special operation platforms. It is suitable for fields such as security, emergency response, inspection, and ecological monitoring, and has capabilities such as target search, situation awareness, image tracking, and target recognition.
Technical parameters
Multi-target tracking | Single target tracking | |
Target type | People, vehicles, ships, and airplanes | General goals |
Update frame rate | ≥20FPS | ≥50FPS |
Tracking rate | ≥32 pixels/frame | |
Recall rate | ≥90% | |
Accuracy | ≥80% | |
Minimum target size | 32x32 @1080p | |
Number of tracked targets | ≥20 | |
Tracking jump rate | ≤15% | |
Visible light | |||
Operating band | 0.4μm~0.9μm | Field of view | 62.13°x1.73° |
resolution | 1920x1080 | Detection range | People 11.1km, vehicles 20km |
focal length | 4.25mm~170mm | Identification distance | People 2.7 km, vehicles 11km |
Power characteristics | |
Power supply range | 11V~28V |
Average power consumption | 20W |
Peak power consumption | 50W |
