Product Description
Overview

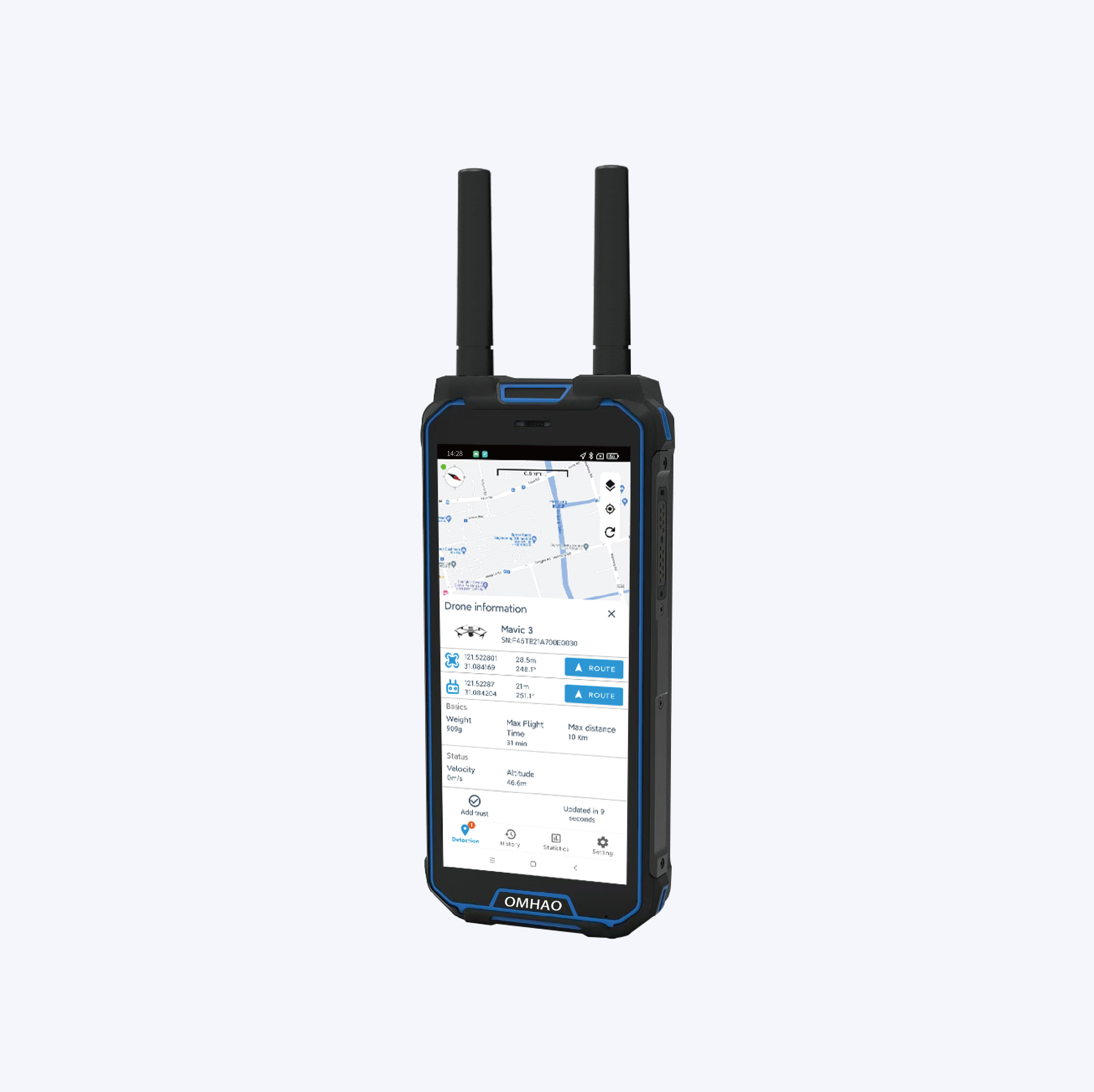

This product is a brand-new generation of handheld unmanned aerial vehicle (UAV) detection and positioning device. Through low-frequency detection technology, it enhances the FPV UAV detection capability, effectively detecting various types of low-frequency racing UAVs and decoding their first-person flight perspective images. This device integrates regulatory functions such as unmanned aerial vehicle (UAV) spectrum detection, protocol parsing, and RID identification. It can achieve real-time detection and early warning of over 900 types of UAVs, and accurately locate and track the trajectories of common UAVs and pilots (remote controls).

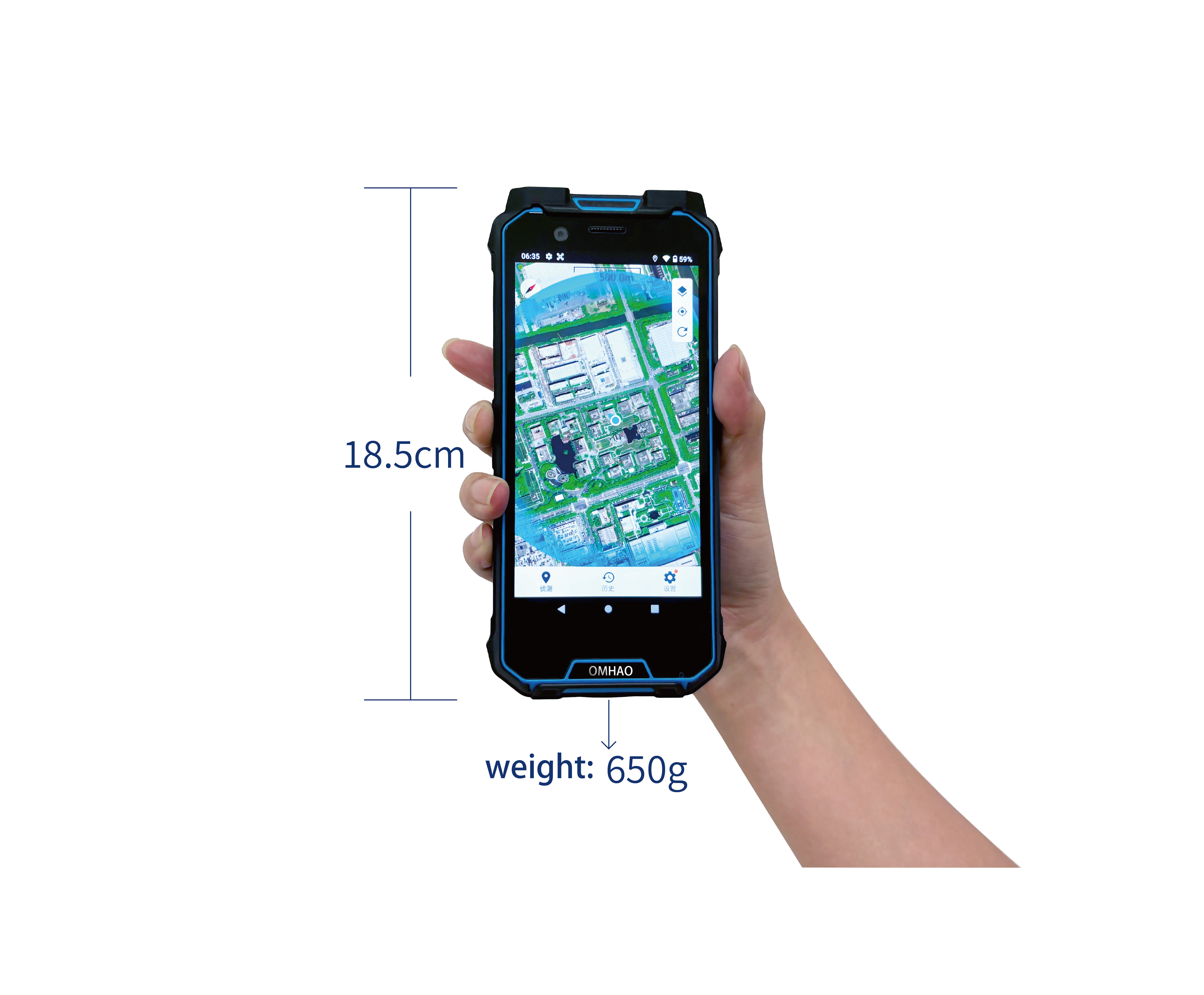

The entire device is only the size of a smart phone, weighing approximately 650 grams. It is equipped with a common frequency band detection antenna, making it easy to carry and long-lasting in battery life. It can be applied to low-altitude security operations in various scenarios.
Parameter
Performance Index | |||
No | Indicator | Parameter | Notes |
1 | Frequency range | 100MHz~6GHz | |
2 | Detection radius | 1~2km (urban environment) | |
3 | Response time | 3 ~ 5s | |
4 | Targeting range | 1~2km (urban environment) | |
5 | Detection quantity | ≥10 |
Mechanical Parameters | |||
NO | Indicator | Parameter | Notes |
1 | Dimensions | 185mm*80mm*33mm | |
2 | Weight | (658±10)g | With an antenna |
3 | Packing box size | L*W*H:(335*260*130mm)±5mm | |
4 | Packing box weight (full) | 2.5kg |
Electrical Characteristics | |||
NO | Indicator | Parameter | Notes |
1 | Batterycapacity | 8000mAh | Built-in lithium battery |
2 | Operatingtime | ~4h | When Screen brightness is 20%, temperature is 25℃ |
3 | Charging duration | ~2.5h | Withthe original charger |
Environmental Adaptability | |||
NO | Indicator | Parameter | Notes |
1 | Operating temperature | -35~50℃ | |
2 | Storage temperature | -40~40℃ |
