Overview

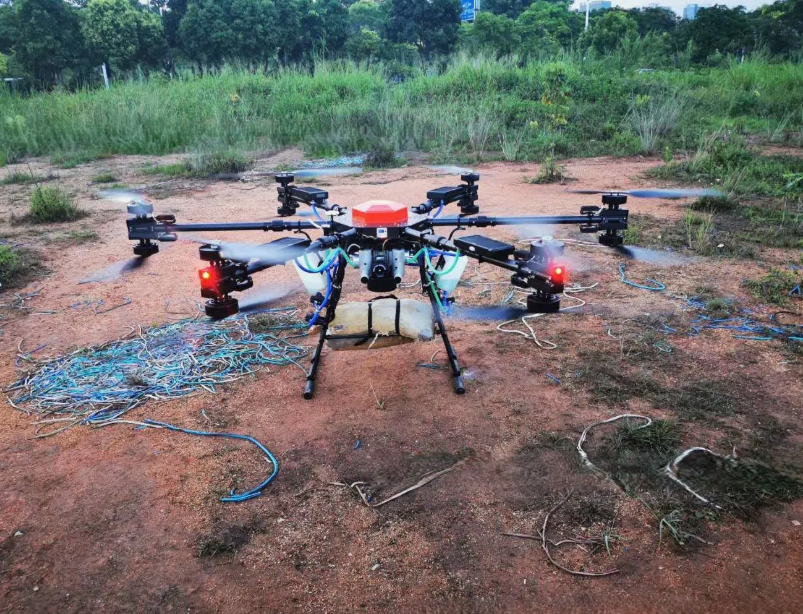

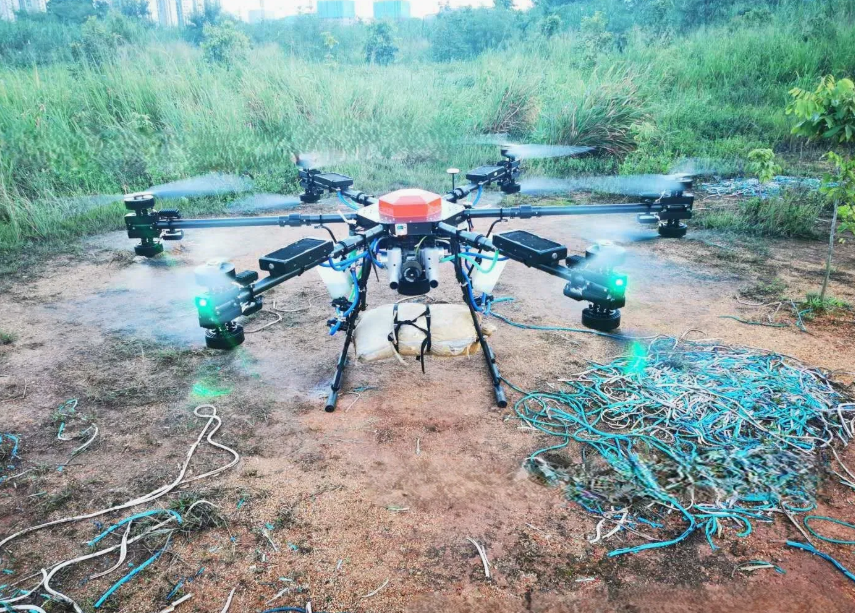

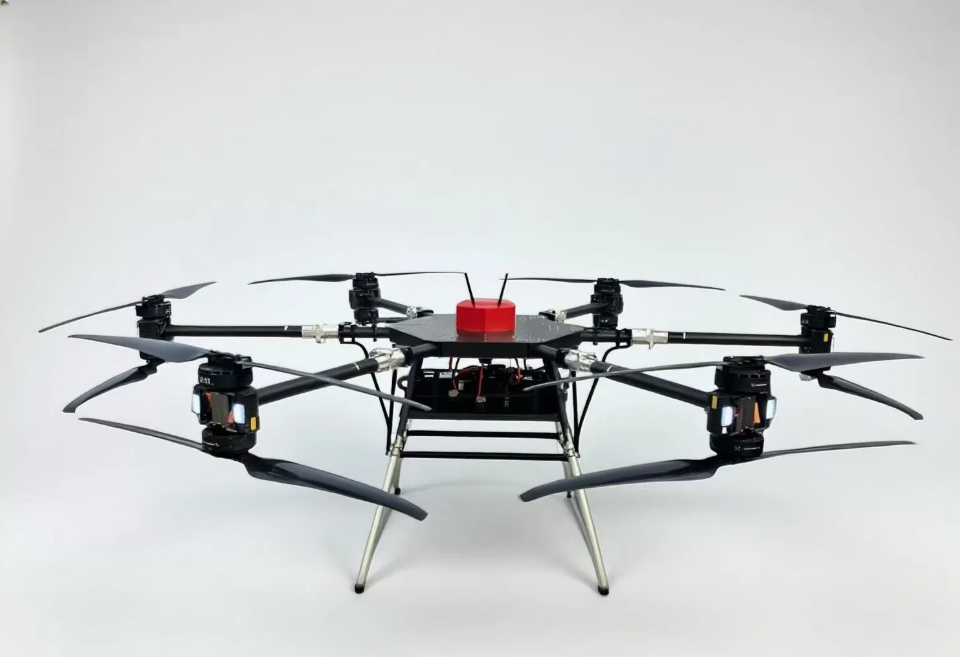

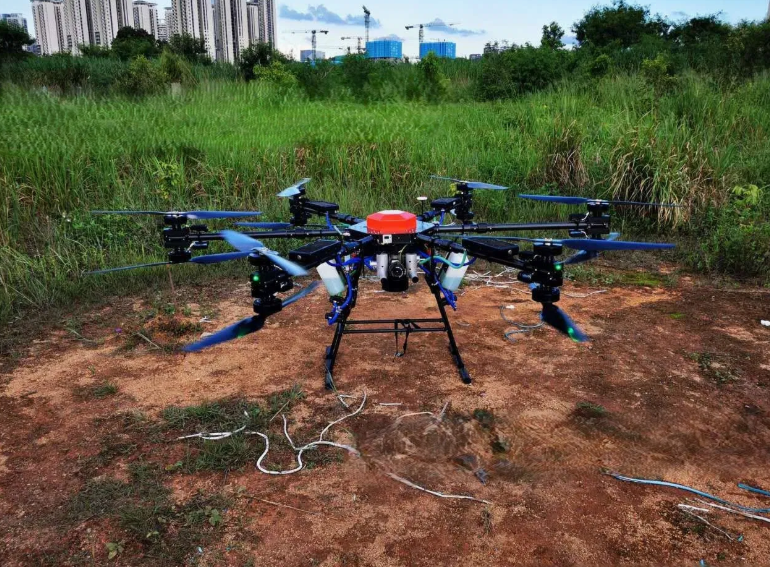

This professional-grade heavy-lift Unmanned Aerial Vehicle (UAV) is engineered for the most demanding industrial missions, including heavy cargo transportation, firefighting, and emergency rescue.Boasts a massive 195kg Maximum Takeoff Weight and a 60kg payload capacity, enabling it to carry heavy equipment with ease. Its 125kg self-weight includes integrated systems and fuel for operational readiness.The efficient hybrid system ensures extended mission times. It achieves over 60 minutes of flight with a heavy 50kg load and up to 90 minutes with a 30kg load, maximizing operational efficiency.
Detailed technical parameters | |||
Body material | High strength carbon | Body wheelbase size | 2650mm |
Collapse folding size | 980mm*980mm*820mm | maximum takeoff weight | 195kg |
Total weight of the machine (including engine, generator, water cooling system, and 30L fuel) | 125kg | Payload capacity | 60kg |
Economic operation load | 50kg | Battery life | ≥100min(maximum range) |
50kg standard load endurance time | ≥60 minutes | Total engine output power | 30,000w |
Average fuel consumption | 30L/h | Flight control system | Durable dual core IMU, dual backup GNSS, RTK, and blade protection |
Flight hover accuracy | ≤0.1m | Classification of wind resistance | ≥6 levels, instantaneous 8 levels |
Flight speed range | 0-12m/s | Flight Sea Level | ≤1200 m(too high will cause the engine to suck oxygen and reduce power) |
Climbing/landing rate | 3-5m/s | Remote control distance | 15000 m (expandable, interference free and barrier free) |
Airplane mode | Manual/GPS/Autonomous | Flight status information is displayed | APP Smart Ground Station |
Operating temperature of the whole machine | -30 to 65 degrees | Supports extensions | Transportation/Fire |
