Overview

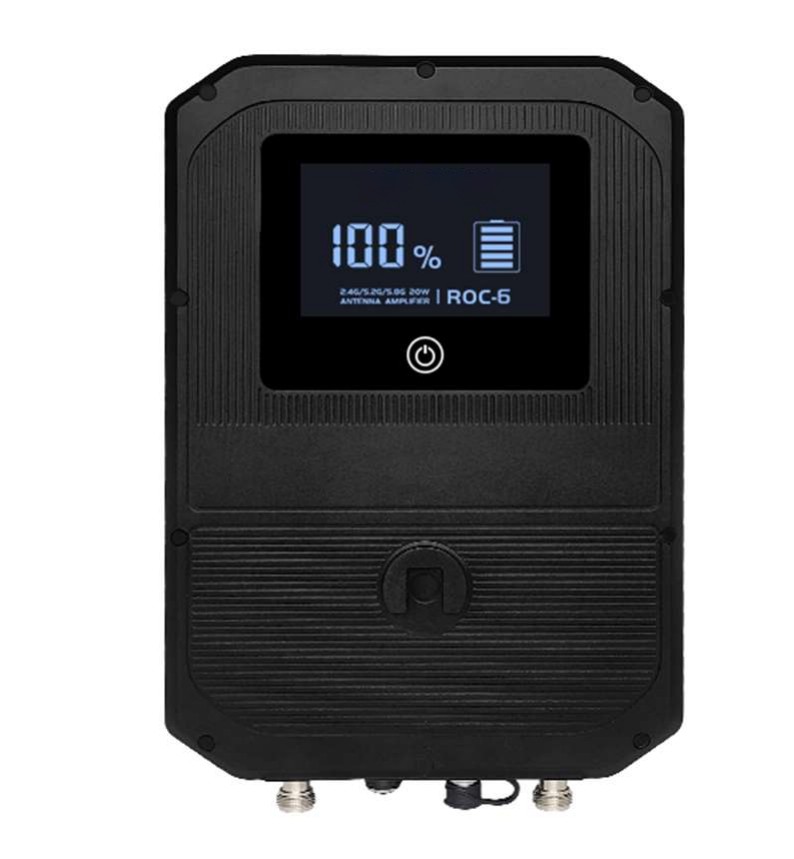

The YH-A39 2.4G/5.8G Drone Signal Amplifier is a professional-grade drone communication enhancement device that utilizes advanced signal processing technology specifically designed to improve signal transmission performance in the 2.4GHz and 5.8GHz frequency bands. Through intelligent signal gain and noise suppression technology, this device effectively extends drone control distance and video transmission range. Even in complex electromagnetic environments or long-distance flight conditions, it maintains stable and smooth video transmission with precise control response. Featuring universal interface design, it is compatible with mainstream drone brands and models. Easy installation and plug-and-play operation allow for significant flight experience improvement without complex debugging.
Features
1. Maximum output power 20W
2. Ultra-large capacity battery, 5000mAh/16.8V
3. 2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching
4. All-aluminum shell, better cooling effect
Parameters
Number | Items | Specifications | |
1 | Frequency Range | 2400-2500MHz | 5150-5350MHz/5725-5850MHz |
2 | Max Output Power | 43dBm(20W) | 43dBm(20W) |
3 | Antenna Gain | 15dB±1 | 18dB±1 |
4 | Battery Capacity | 5000mAh/16.8V | |
5 | Receiving Gain | 12dB±1 | 15dB±1 |
6 | Transmission Gain: | 20dB±1 | 20dB±1 |
7 | Input Trigger Power | Min:3dBm Max:23dBm | Min:3dBm Max:23dBm |
8 | EVM | 3%@33dBm 802.11g | 3%@33dBm 802.11a54Mbps OFDM |
9 | Noise Figure | <2.2dB | <2.2dB |
10 | Current Supply | 3.2A@Pout 43dBm 16.8V | 3.2A@Pout 43dBm 16.8V |
11 | Charging Voltage | 16.8V/3A | |
12 | Working Time | 6 Hours | |
13 | TX/RX Switch Time Delay | <1 us | |
14 | Water Proof | IP68 | |

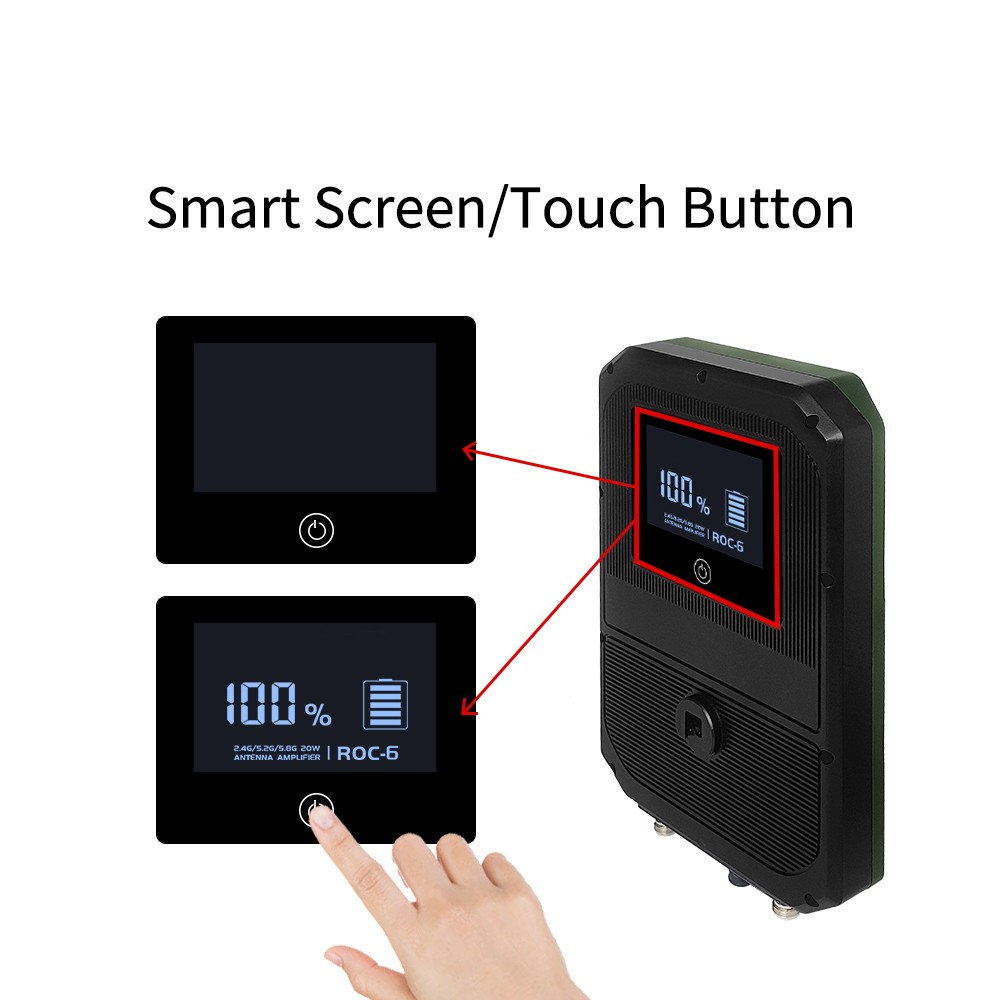

15 | Battery Capacity Tester | LCD Screen | |

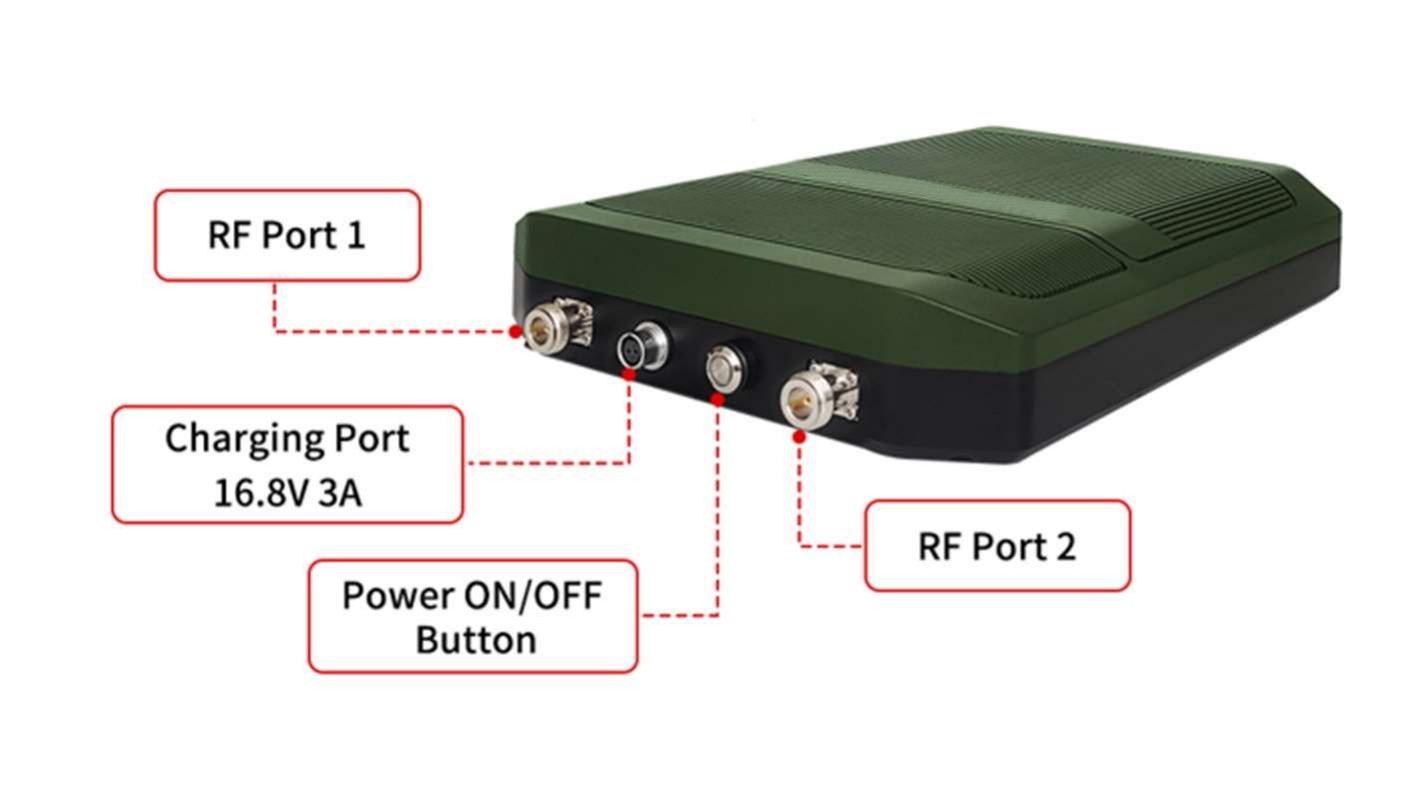

16 | Charging Port | IP68Aviation Plug | |
17 | RF Connector | N-Female | |
18 | Operating Temperature | -30℃~+70℃ | |
19 | Storage Temperature | -40℃~+150℃ | |
20 | Operating Humidity | Up to 95% rel. humidity | |

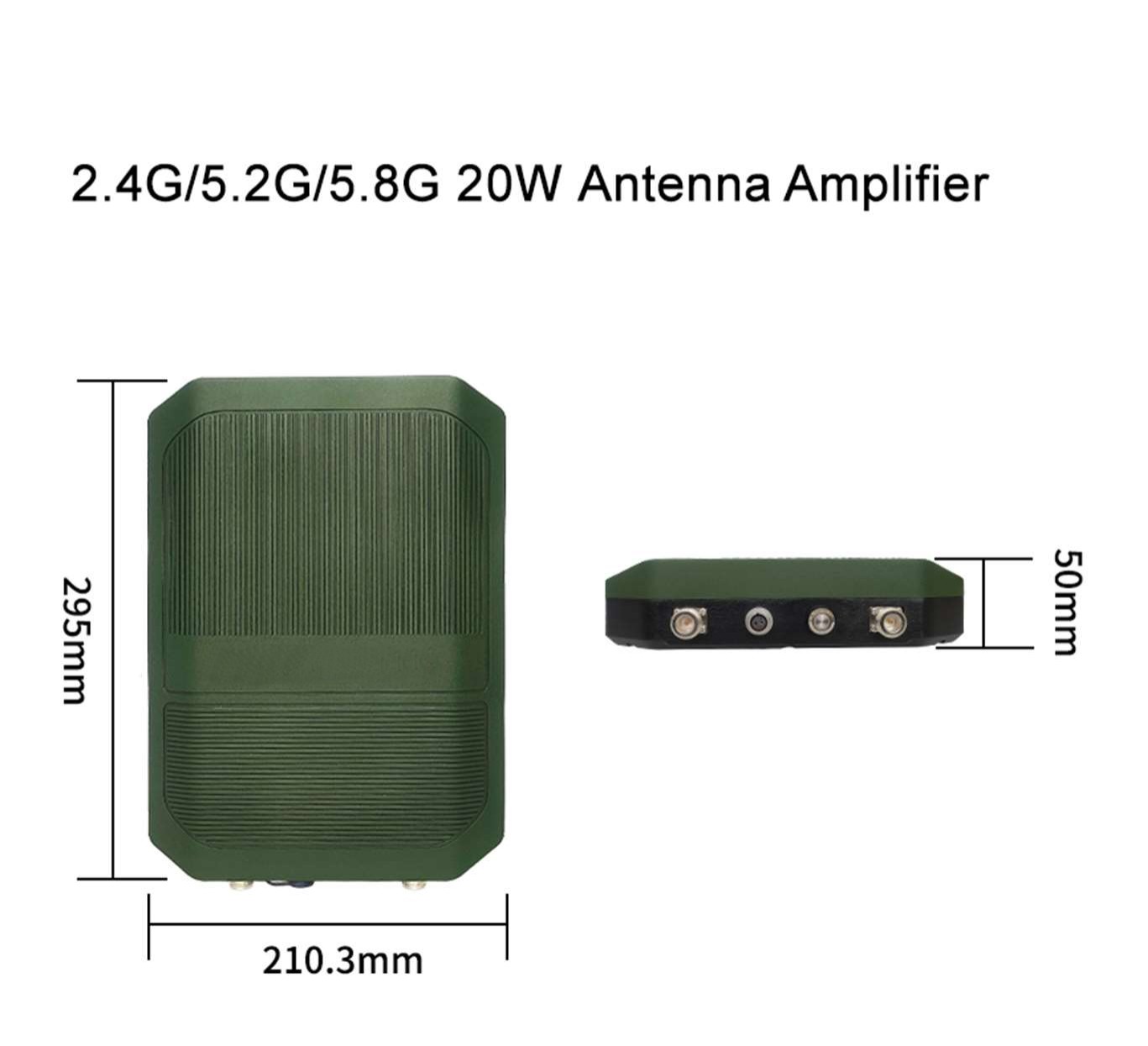

21 | Shell Size | 295*210*50(mm) | |
22 | Shell Material | Aluminum | |
23 | Net Weight | 2.0Kg | |
