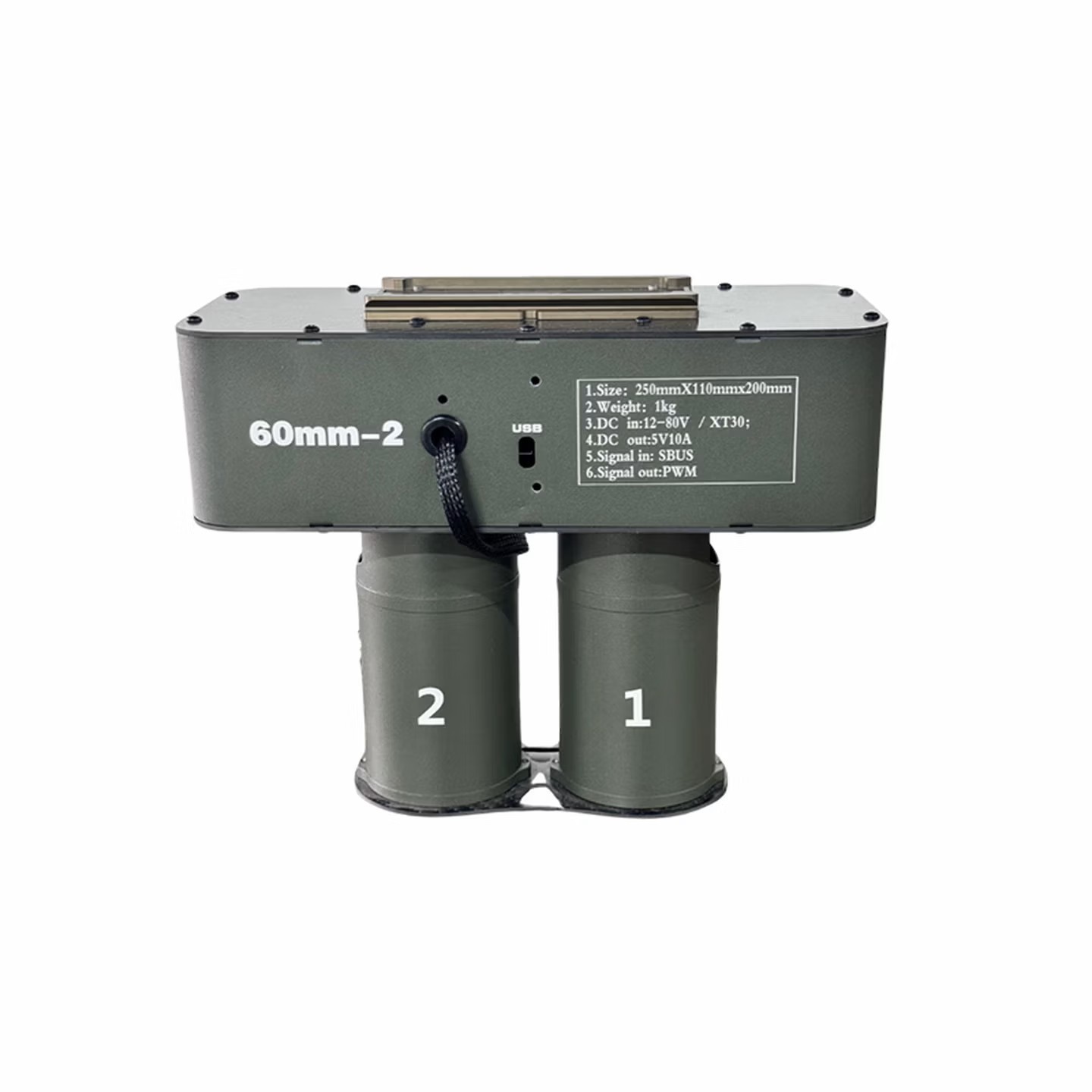

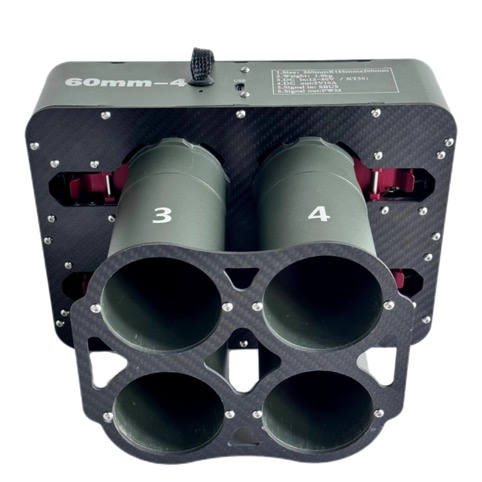

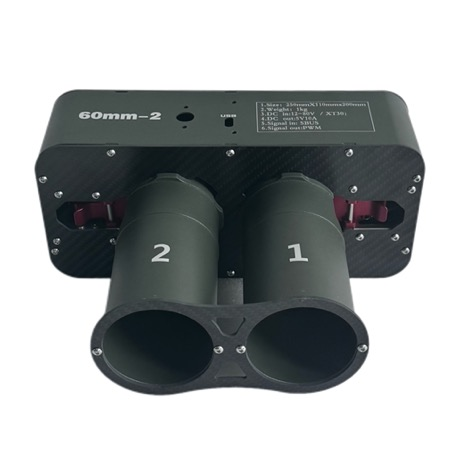

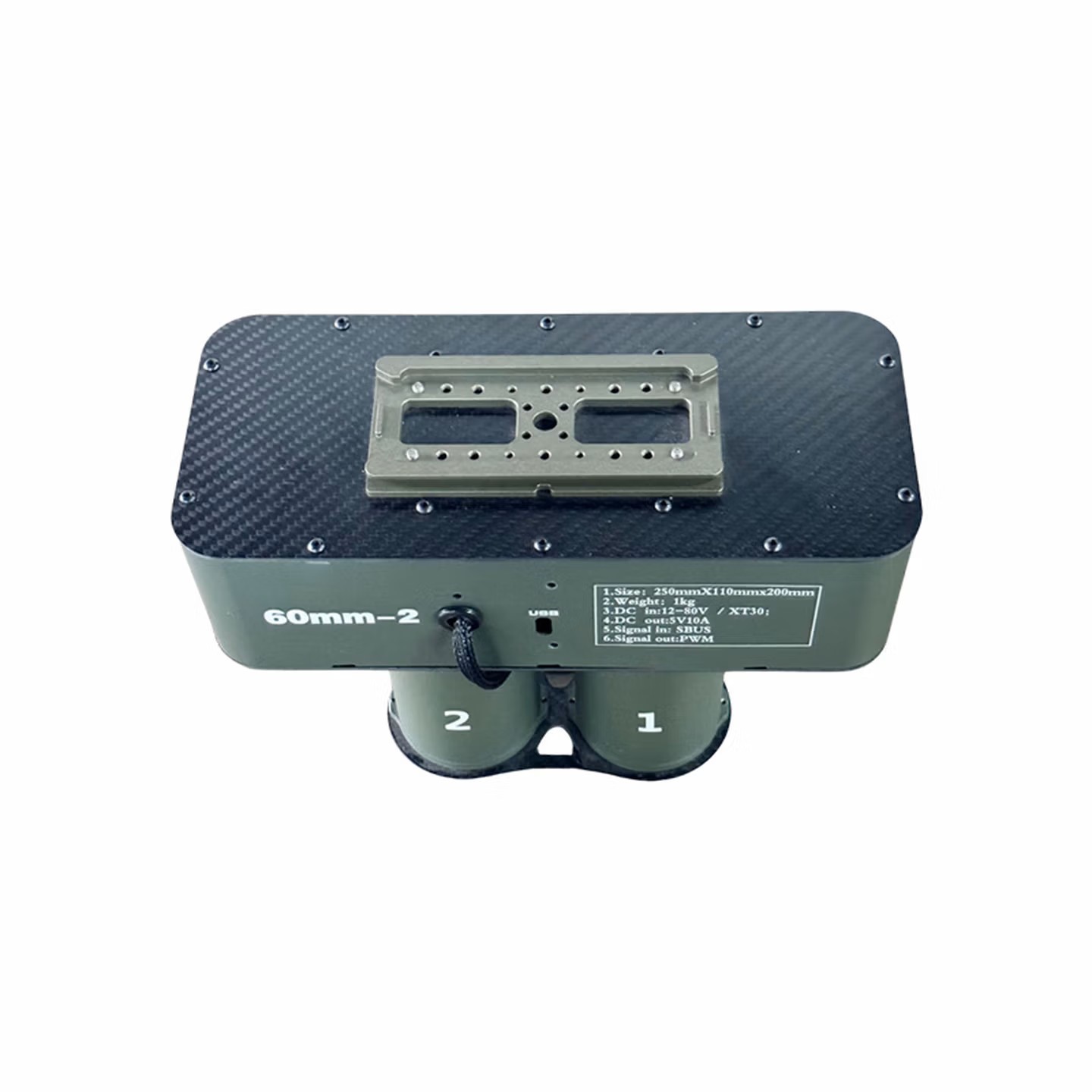

Yh-G19 Hy-60mm Thrower Drone Mounted Throwers

External dimensions

255 x 110 x 200mm / 2 rounds
255 x 186 x 200mm / 4 rounds
255 x 255 x 200mm / 6 rounds
260 x 335 x 200mm / 8 rounds
260 x 410 x 200mm / 10 rounds

Working voltage

DC 12-80V

Net weight

60-2    1kg
60-4    1.8kg
60-6    2.4kg
60-8    3kg
60-10  3.7kg

Signal mode

SBUS/PWM/TTL

Material

Aviation aluminum, carbon fiber, 304 stainless steel

Throwing accuracy

1-3 meters

Installation method

Impact locking from bottom to top

Control distance

5 - 10KM

Throwing mode

Automatic single-shot or full throw

Expansion options

2, 4, 6, 8, 10 rounds

Throwing control

One channel for safety lock and another for throwing

Safety lock

Built-in safety unlock

Loading capacity

2-10 rounds

Functions

Quick throwing, sensitive and rapid response, safe and reliable, centralized control circuit, compatible with multiple signal protocols

Power supply mode

Onboard power
