1.Overview

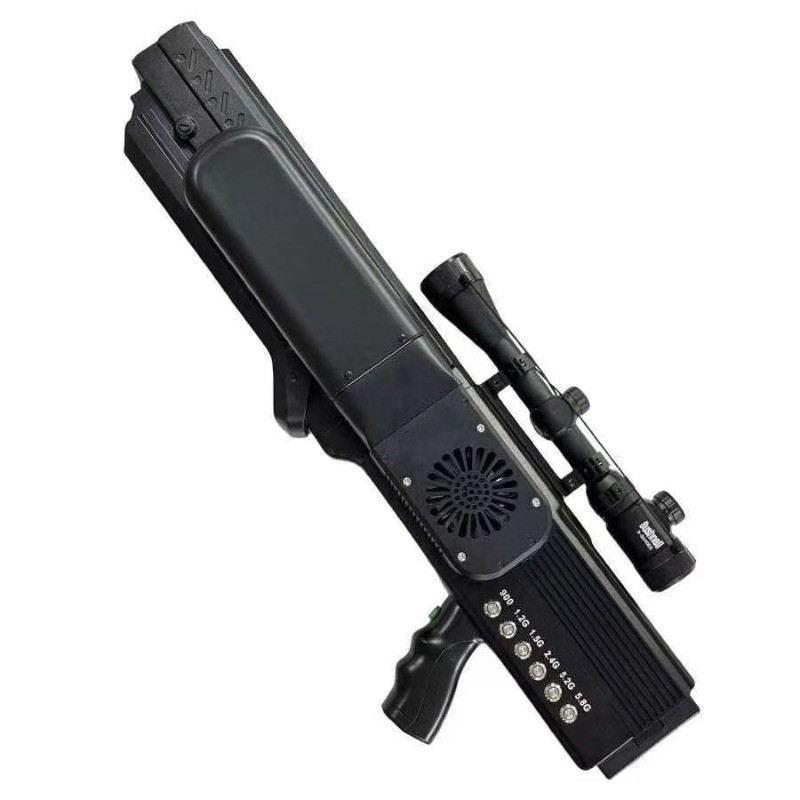

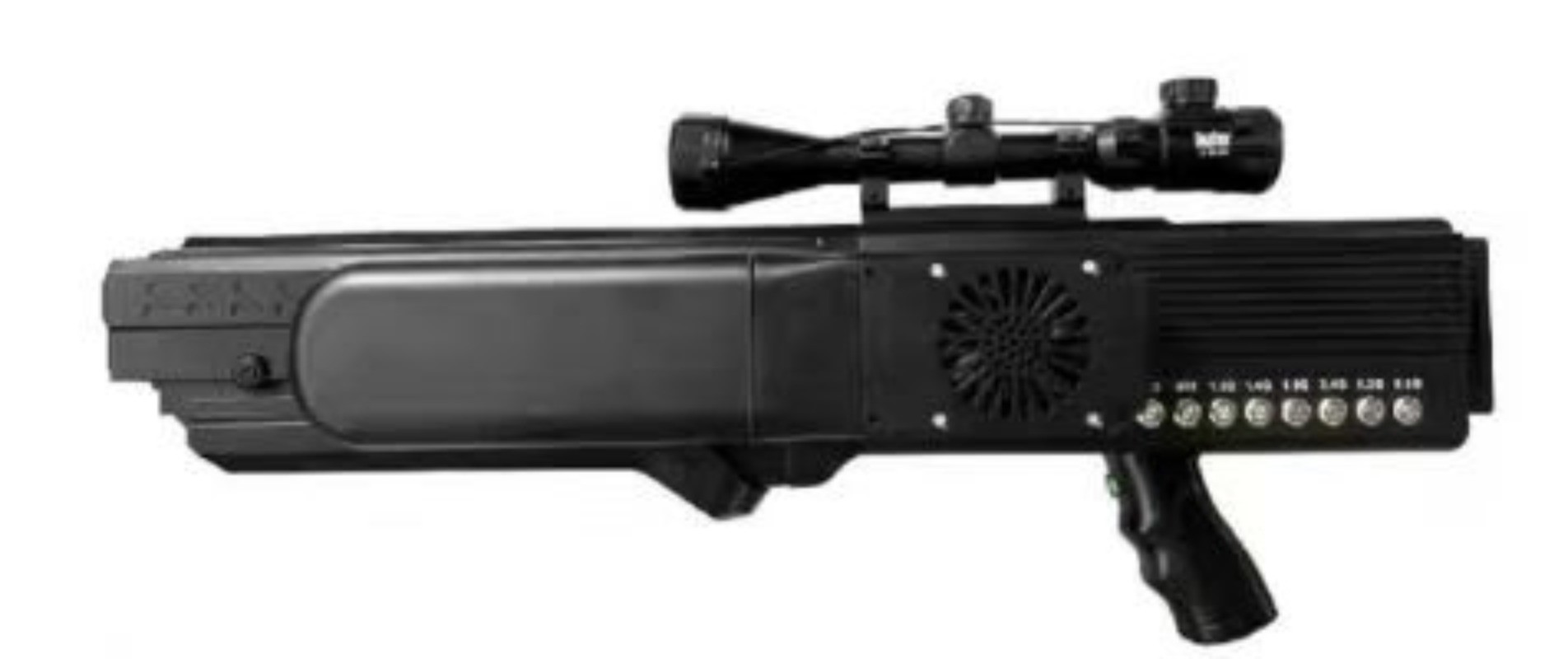

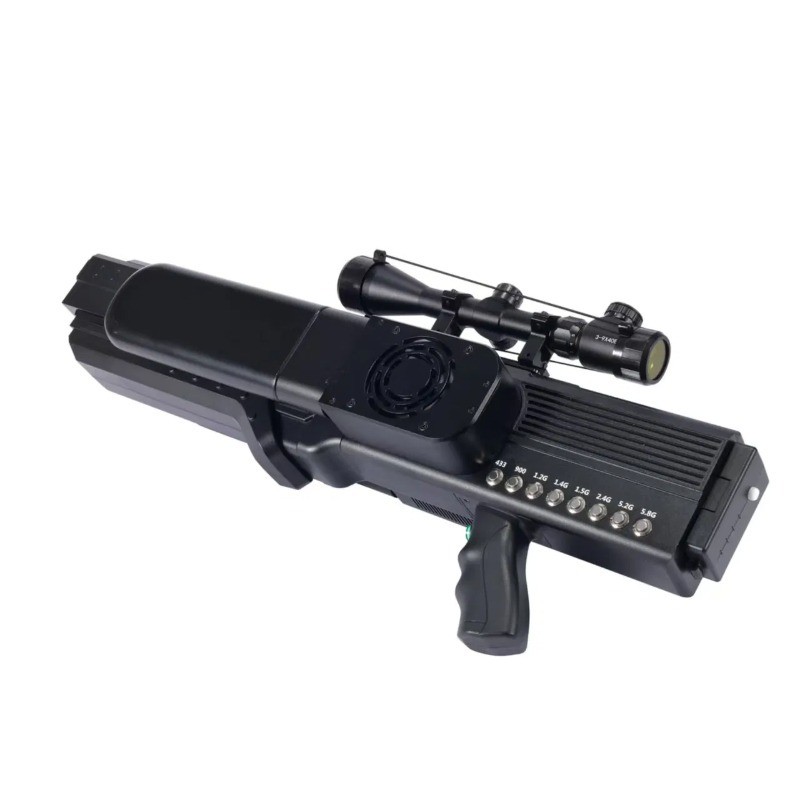

The YH-A03 8-Channel Long-Range Drone Jammer is a professional-grade UAV defense system that integrates cutting-edge jamming technology with user-friendly design. Featuring an innovative 8-channel independent jamming architecture with a total output power of 130W, it achieves an effective jamming range of 1000-1500 meters while maintaining excellent performance in complex electromagnetic environments. Through precise multi-band coordinated jamming technology, the device can simultaneously block drone remote control signals, image transmission, and navigation positioning systems, enabling rapid and effective control of invading UAVs.
The equipment is equipped with eight precise frequency bands: 433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz, each independently optimized. The 2.4GHz band delivers up to 30W output power, the 1.5GHz band provides 20W, while other bands maintain over 10W output, ensuring effective suppression of various commercial and industrial drones. The built-in high-gain antenna system is specifically optimized for different frequency bands, ranging from 5dBi at 433MHz to 16dBi at 5.8GHz, maximizing signal energy utilization.
2.Product Feature
1 High output power over 130W to jam the drone in about 1500 meter in real environment in 3 second
2 8 channel customized 433/900/1.2/1.4/1.5/2.4/5.2/5.8
3 Single band on/off button
4 Light weight 5.6KG and non slip holder design
5 Movable battery lasts 40-50 minute
6 LCD screen to indicate the remain power capacity and voltage
7 Fast cooling with thick heat sink and fans
8 Waterproof, heat resistant, anti-shock and anti-broken
3.How to Use
1 Please check the LCD screen to ensure the jammer is fully charged
2 Choose the frequency band to jam, and press the button
3 Target the drone gun in sky
4 Drone will be forced to return home or land immediately
Pressing the choosen buttons as below sheet to act its jamming function
Usually below channels pressed, the jammer can counter |
> 95% jammer in the market. |
Channel: 2.4 |
Channel: 5.8 |
Channel: 1.5 |
4.Technical Specification
Model No. | YH-A03 |
Size | 700*150*300mm |
Weight | About 5.6kg |
Effective Range | 1000-1500 meter,depends on real environment |
Frequency&Output Power | 410-485 MHz ( 433 MHz) 10W |
840-920 MHz ( 900MHz) 10W | |
1100-1280 MHz ( 1.2 GHz) 10W | |
1560-1620 MHz (1.5 GHz) 20W | |
1370-1390 MHz (1.4 GHz) 10W | |
2400-2500 MHz (2.4 GHz) 30W | |
5150-5350 MHz (2.4 GHz) 20W | |
5725-5850 MHz ( 5.8 GHz) 20W | |
Total 130W | |
Inside Antenna Gain | 433Mhz /5dBi |
2400MHz /14dBi | |
2400MHz /14dBi | |
GPSL1-L5(1.2G/11dBi,(11.5G/12dBi) | |
5800MHz /16dBi | |
5200MHz /16dBi | |
900MHz. /9dBi | |
Output Power | Total 130 Watt |
Battery Use Time | 40-50 minute |
Working temperature | -20ºC to +65ºC |
Power Supply | 24V 15A inside lithium-ion battery |
(It can be designed to connect the external battery) | |
Relative Humidity | 35~85% |
5.Application
To avoid the rapidly emerging threat by UAV, our jammer can be used in below recommend places:
1 Government: Prison, Court, other Law enforcement, etc
2 Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug rehabilitation centers, Security agency, etc
3 Public&Events: Stadium&Events, Important Meetings,etc
4 Transportation: Port&marine, Superyachts, etc
5 Detention Centers, School (examination,library,etc),Theatre,Church, Hospital,etc
6 Personal VIP&Privacy,etc
6.Caution
1 All band open at same time will consume large power; please better remain it within 5 minute to lengthen the battery life time;
2 Please fully charge the jammer before use
3 Please ensure the jamming frequency is suitable for your own need, or it can not be used effectively
4 Forbidden to use while charging
5 Barriers between the UAV and jammer will influence the jamming distanc

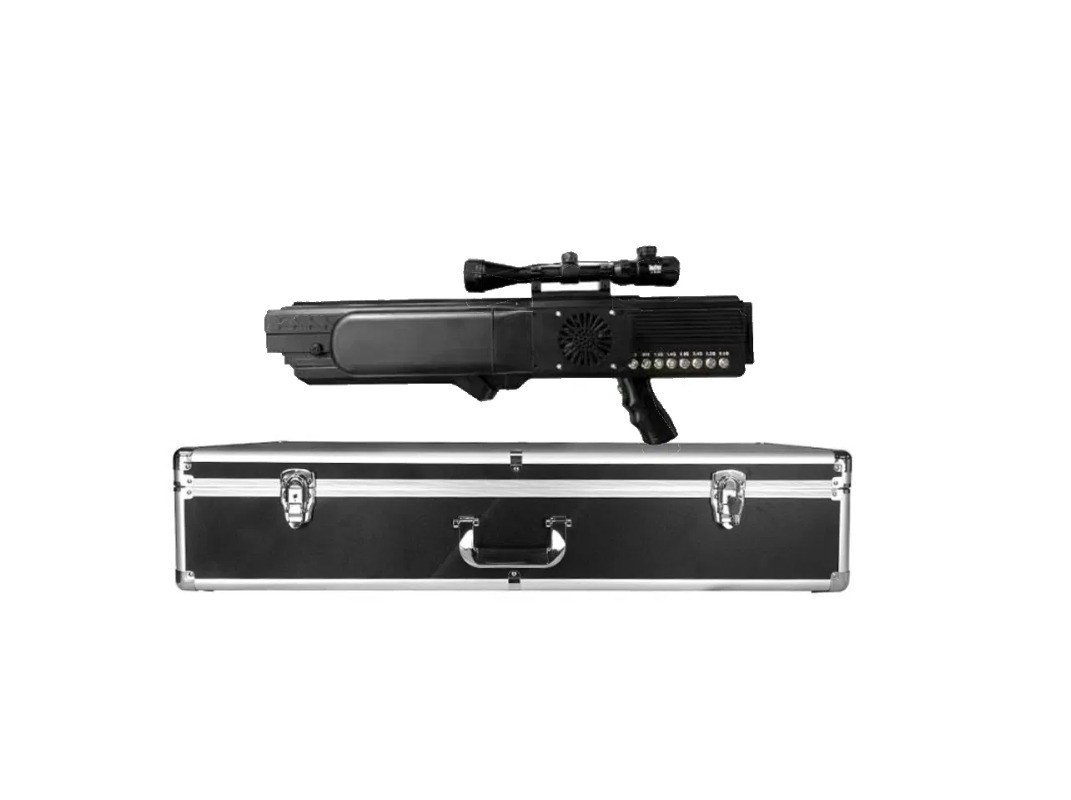

7.Full Set Packing
1pcs*Drone Jammer
1pcs*Battery
1pcs * Charger
User manual be offered online
